Work - China Chair

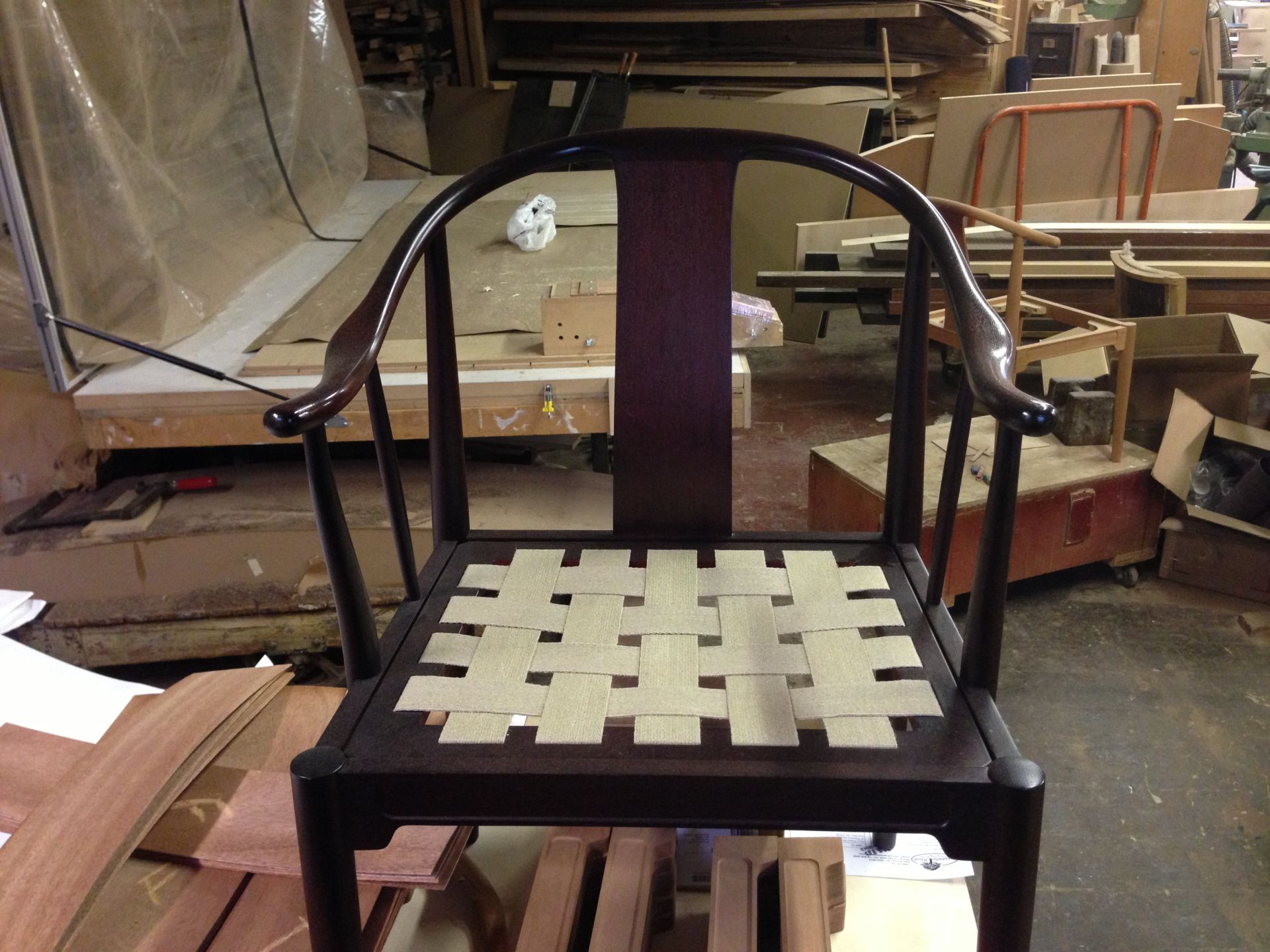

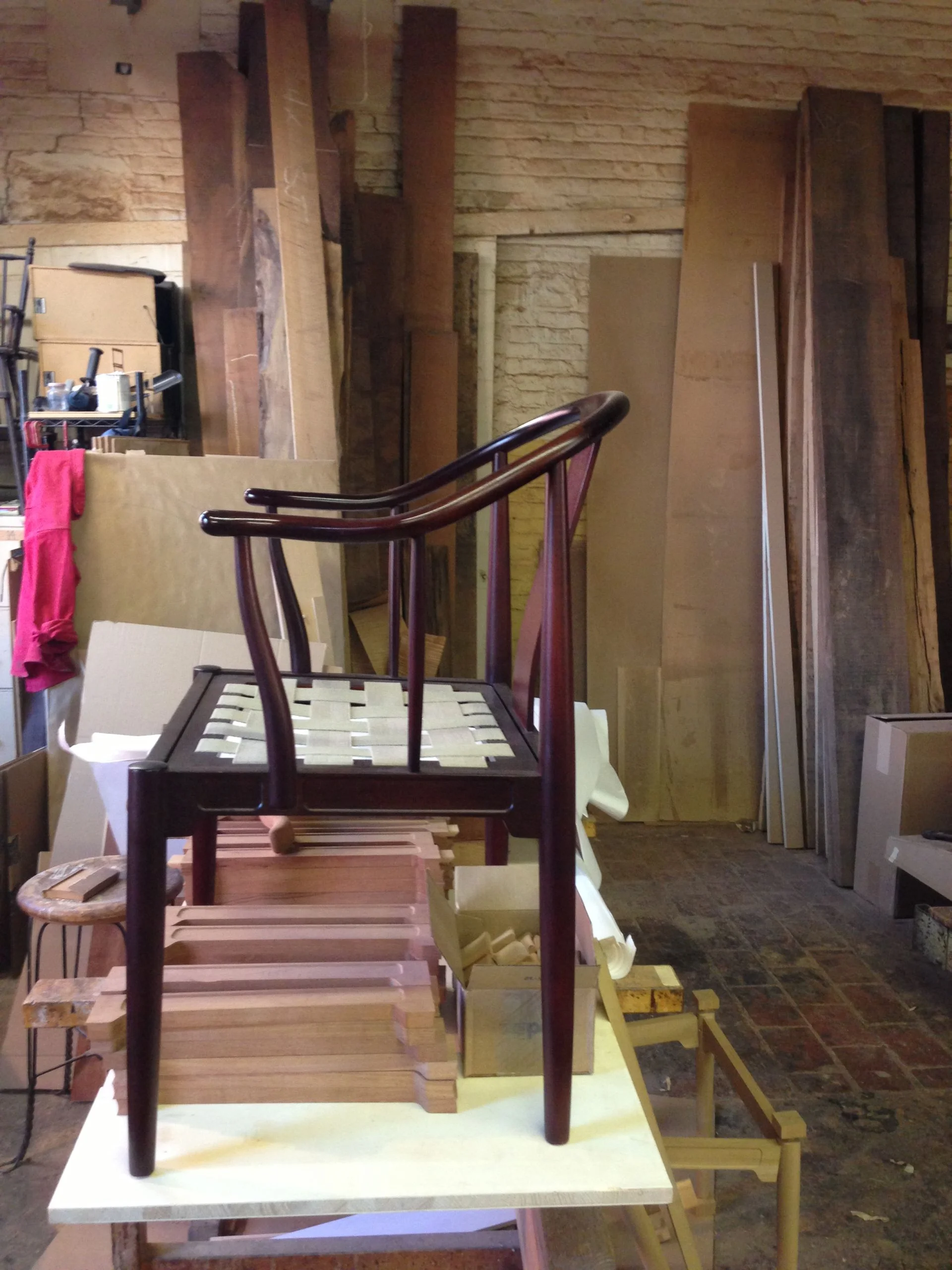

Original
Original

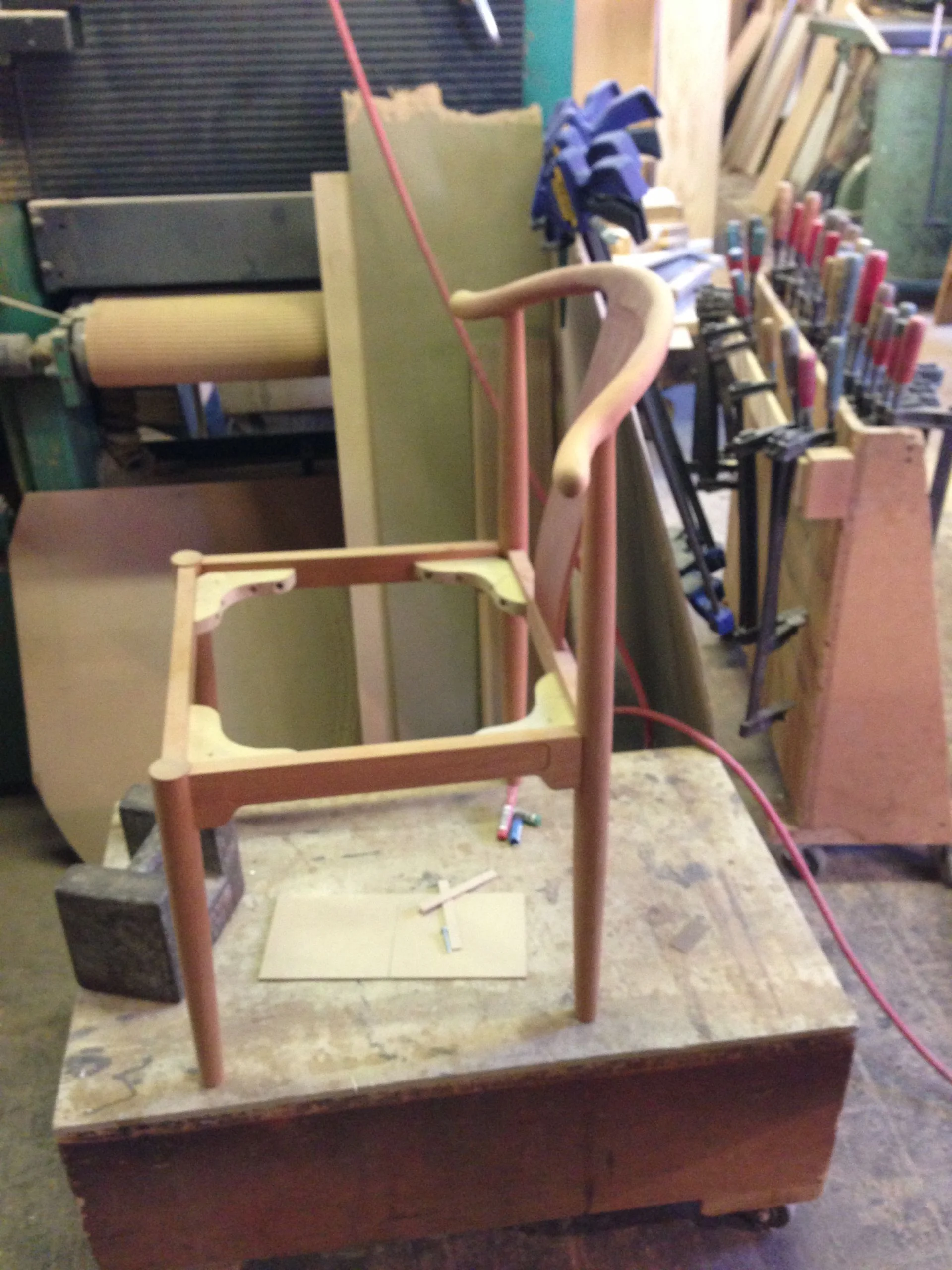

Prototype

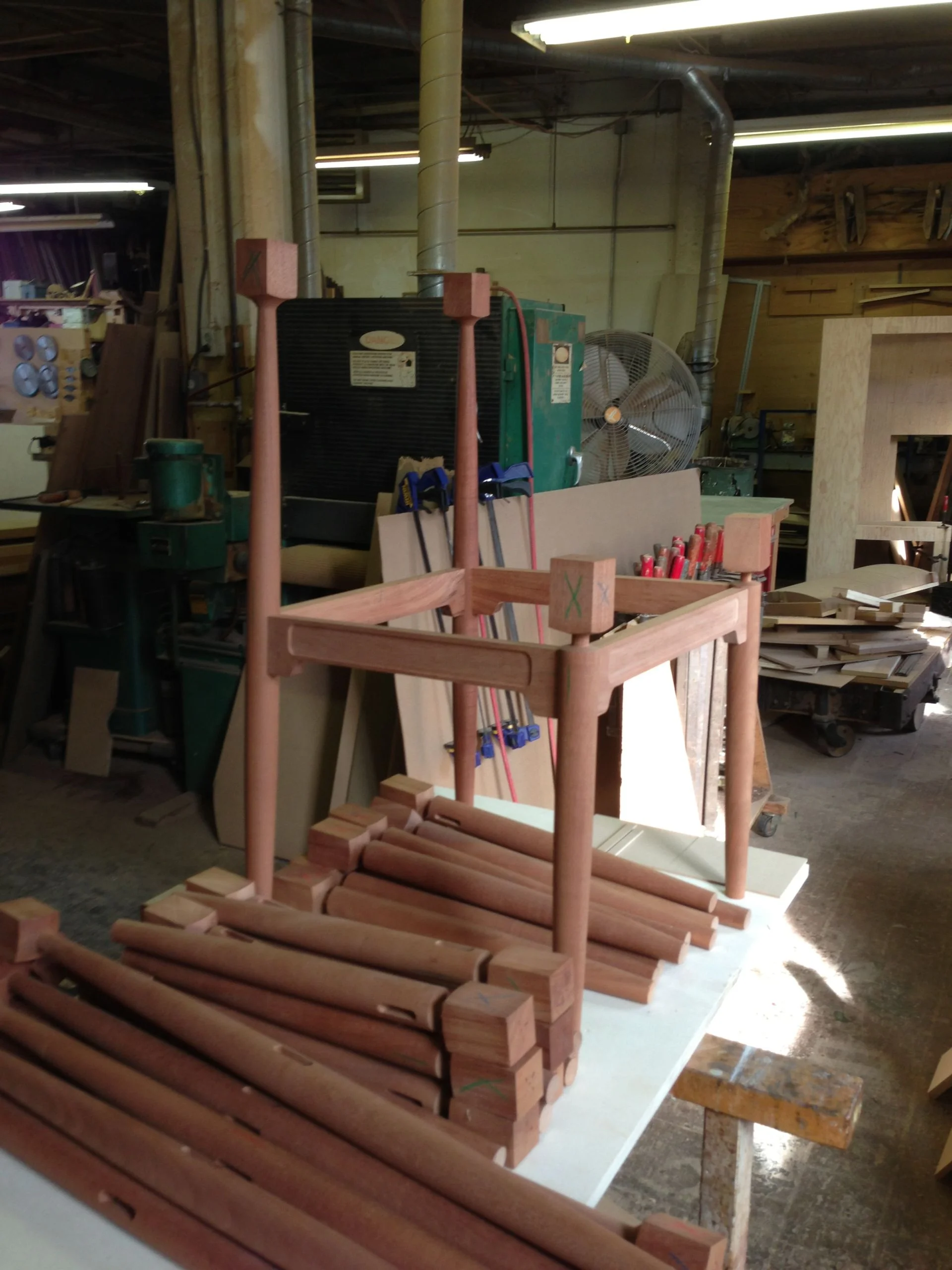

Frame

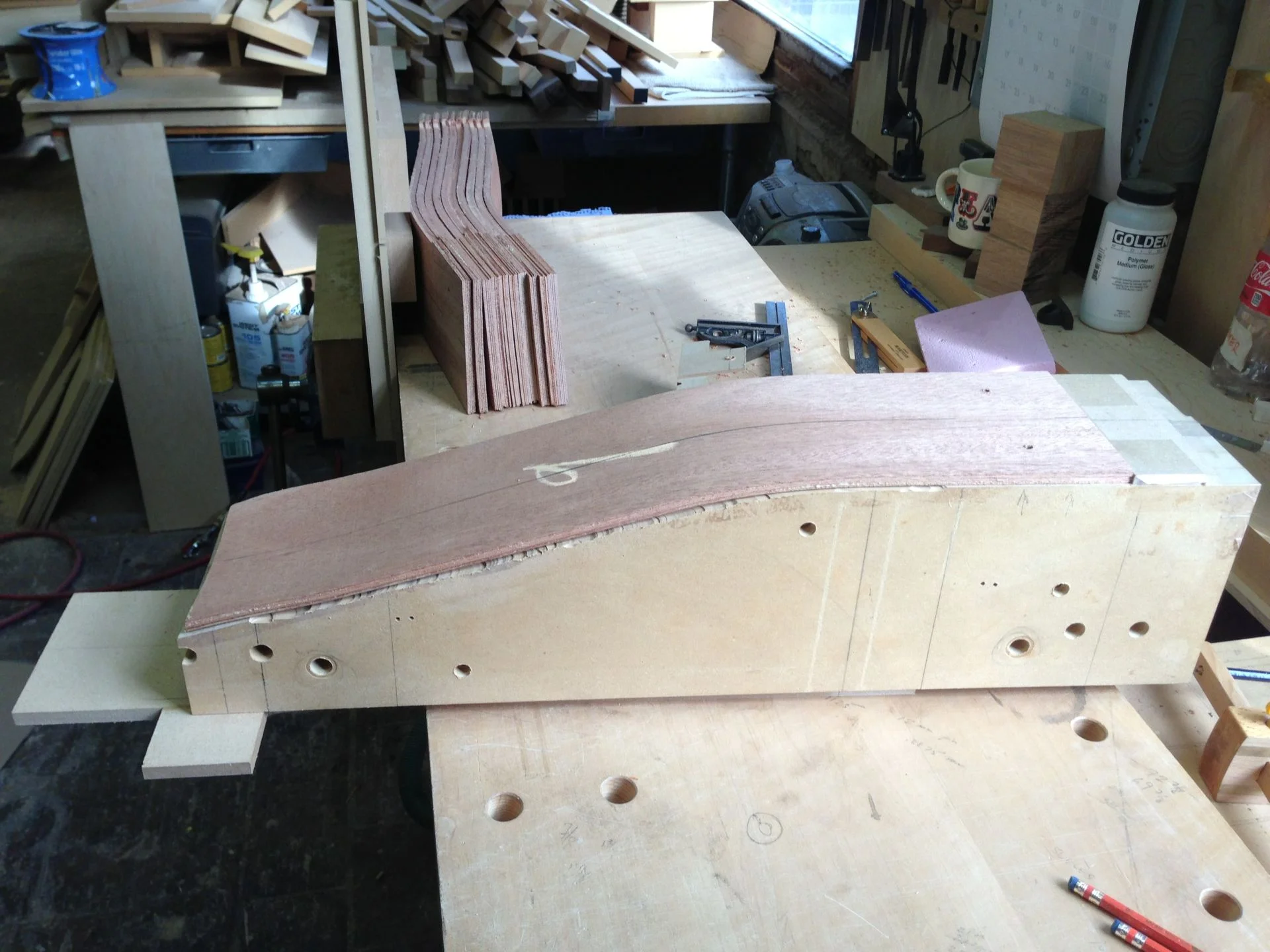

This is the form used to press the laminate back.  Five sheets of 1/16th mahogany.

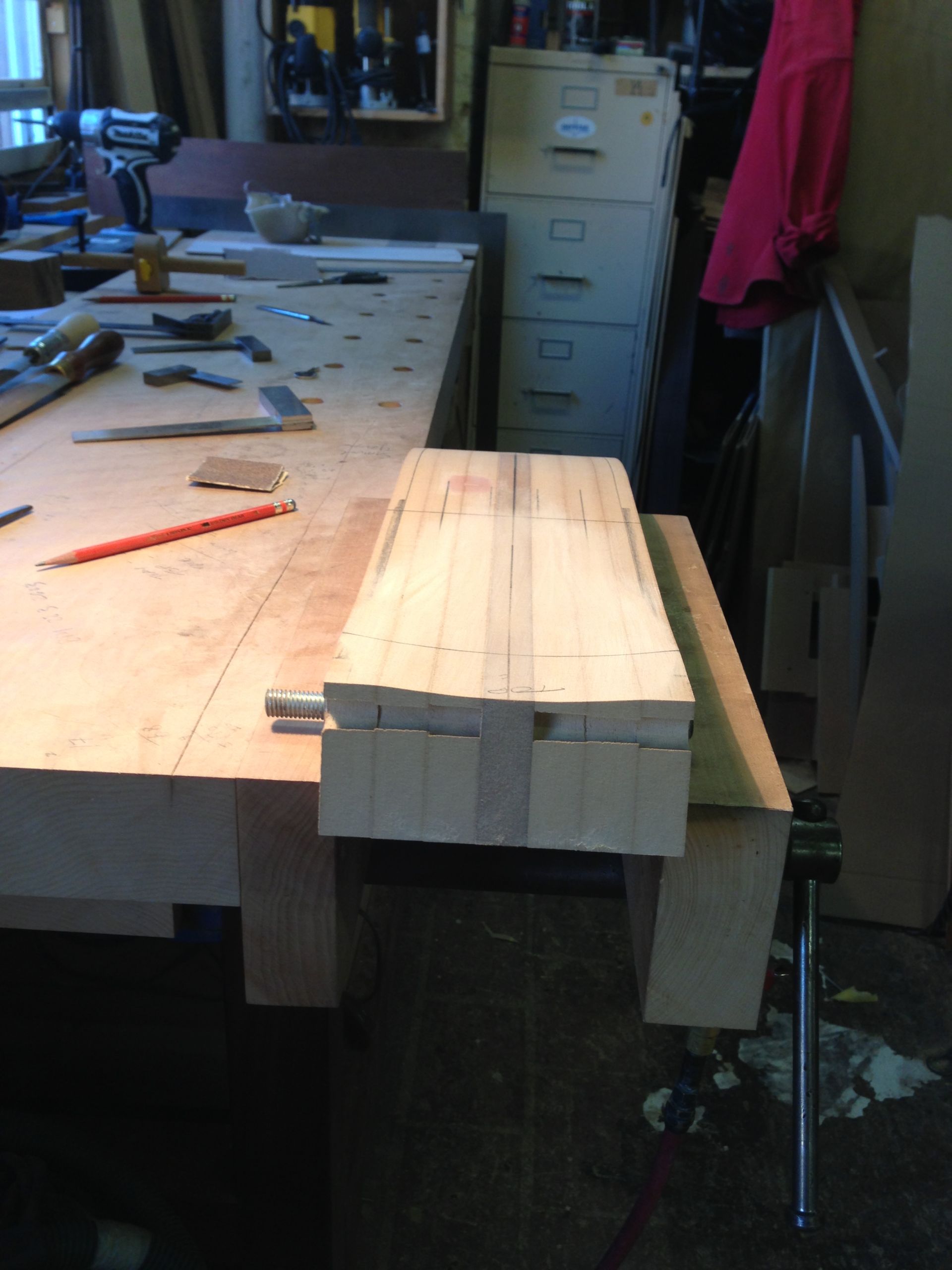

There is a compound curve where the back splat meets the crest rail.

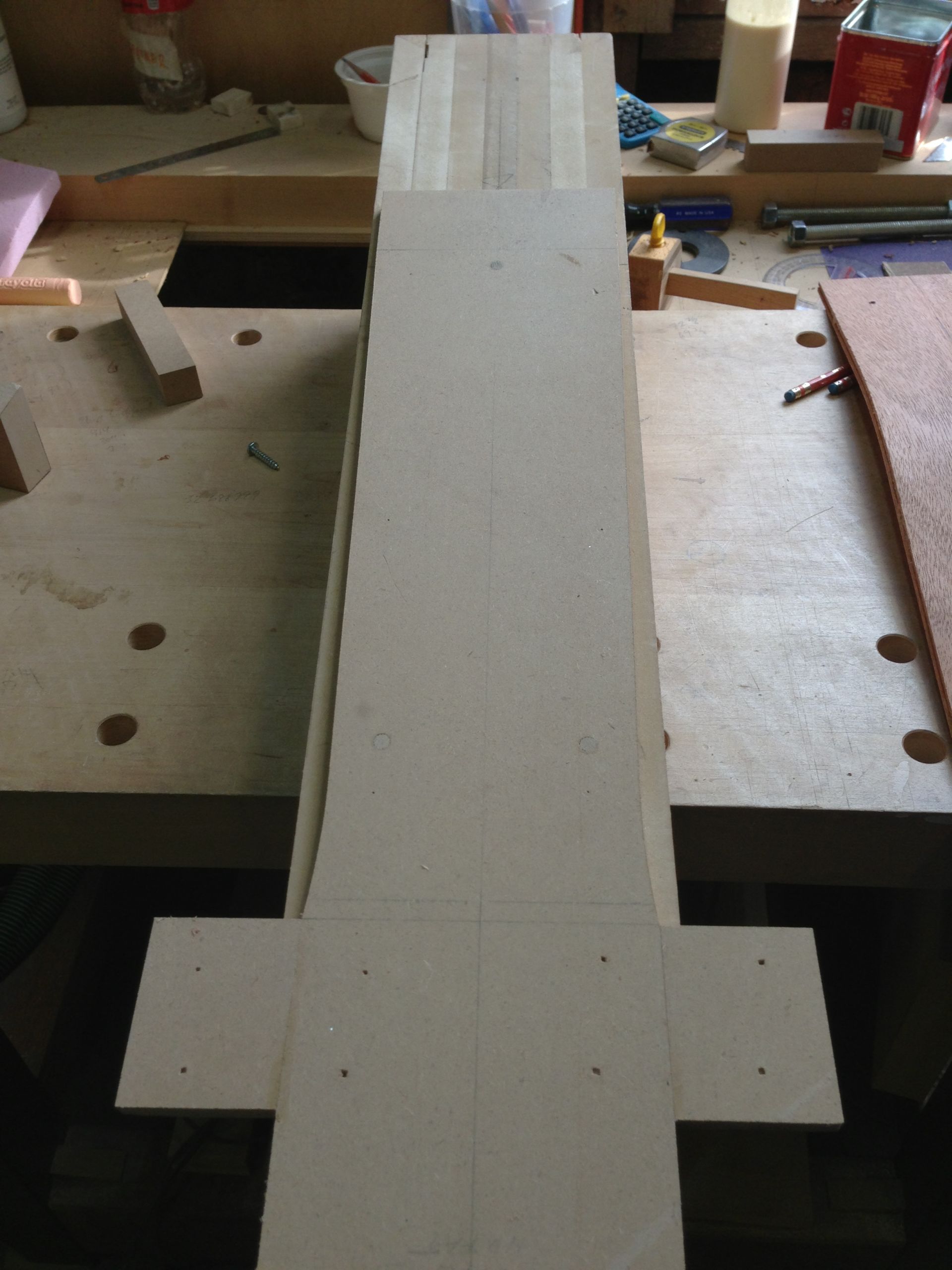

Splat template

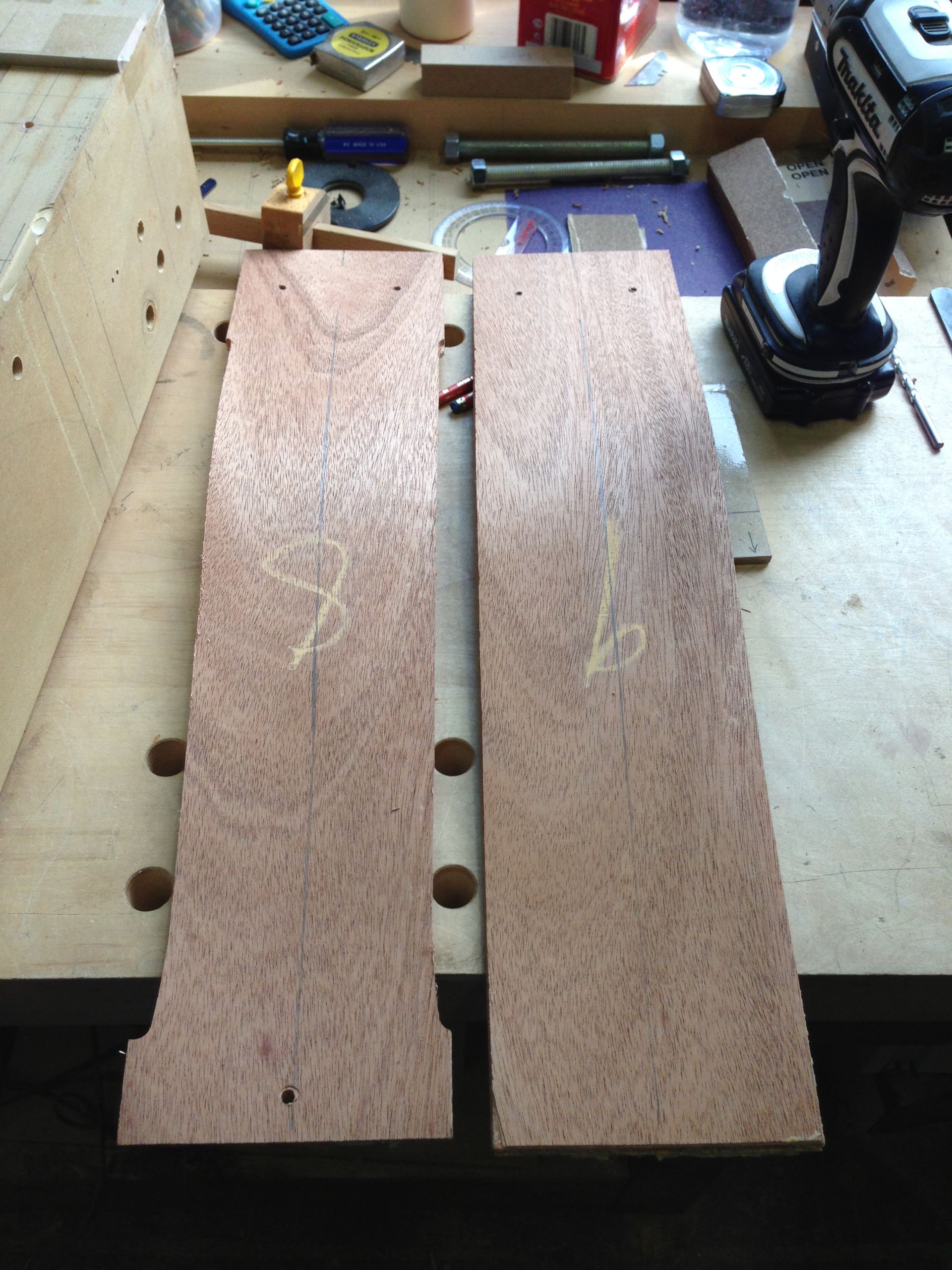

Before and after shaping.

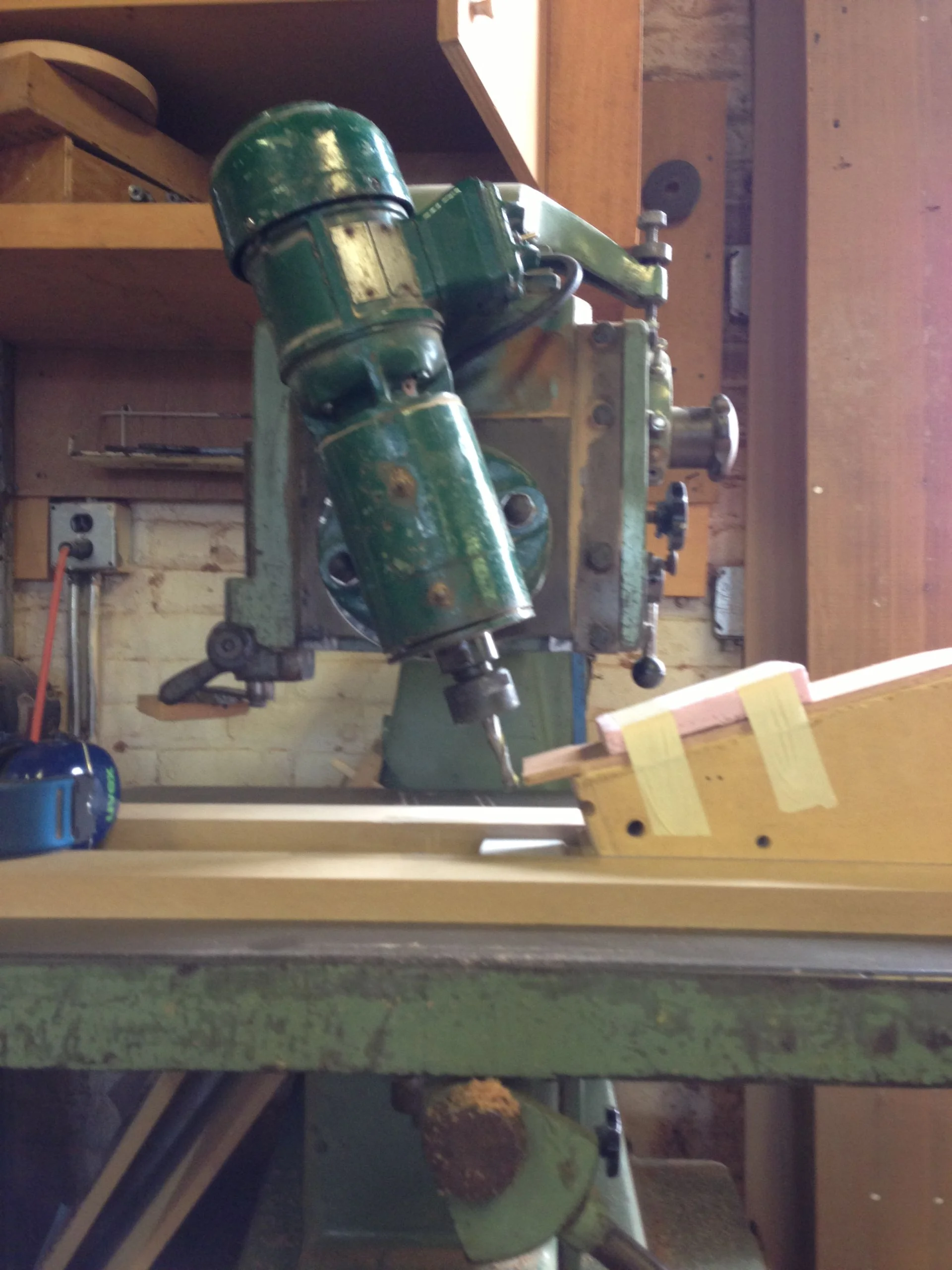

Cutting the top of the splat on an angle to meet the crest rail.

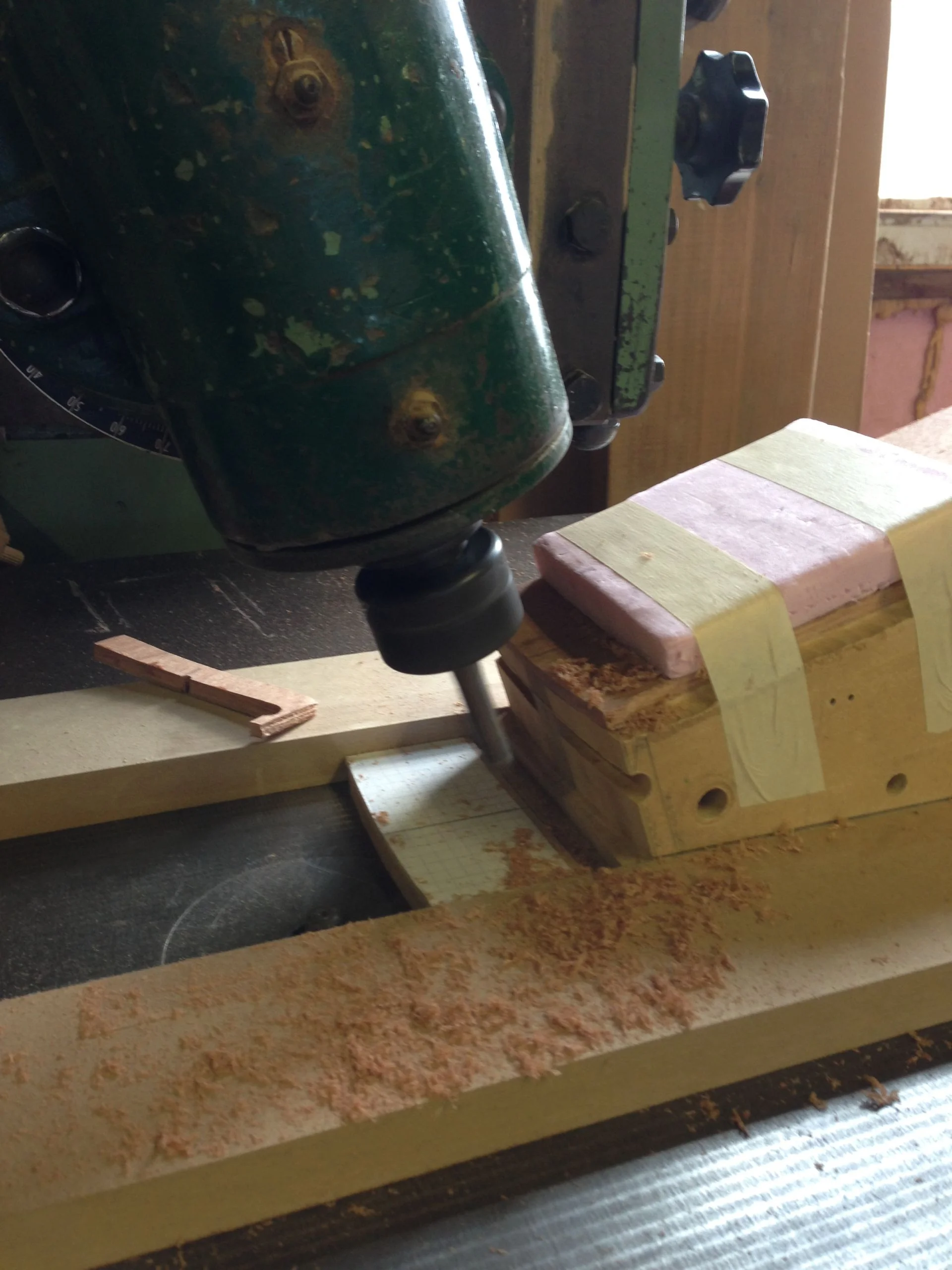

The splat is secured in a jig held square to the cutter and the pin in the router traces the desired shape.

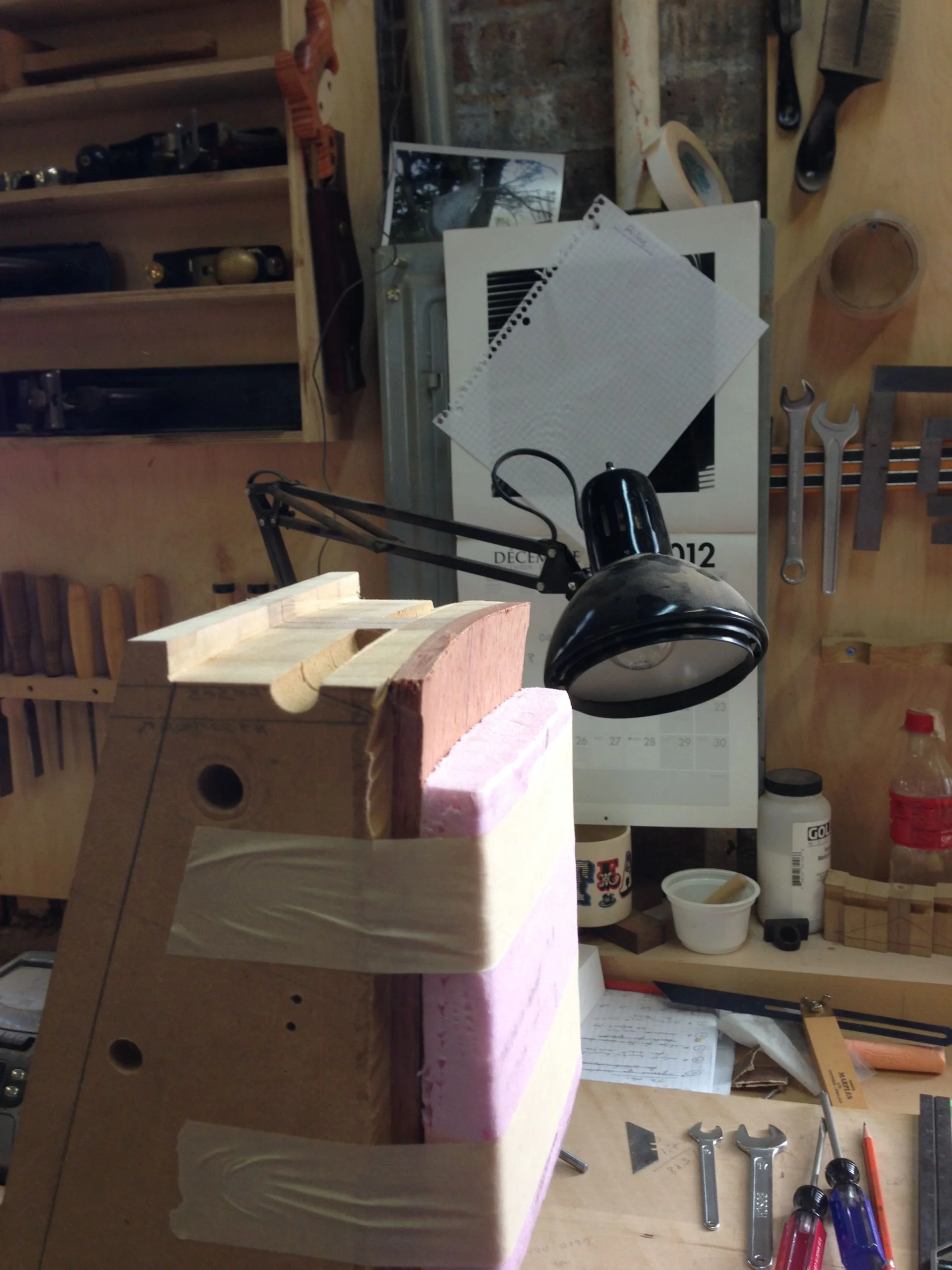

The top of the form gives me a curved surface upon which to run a handheld router.

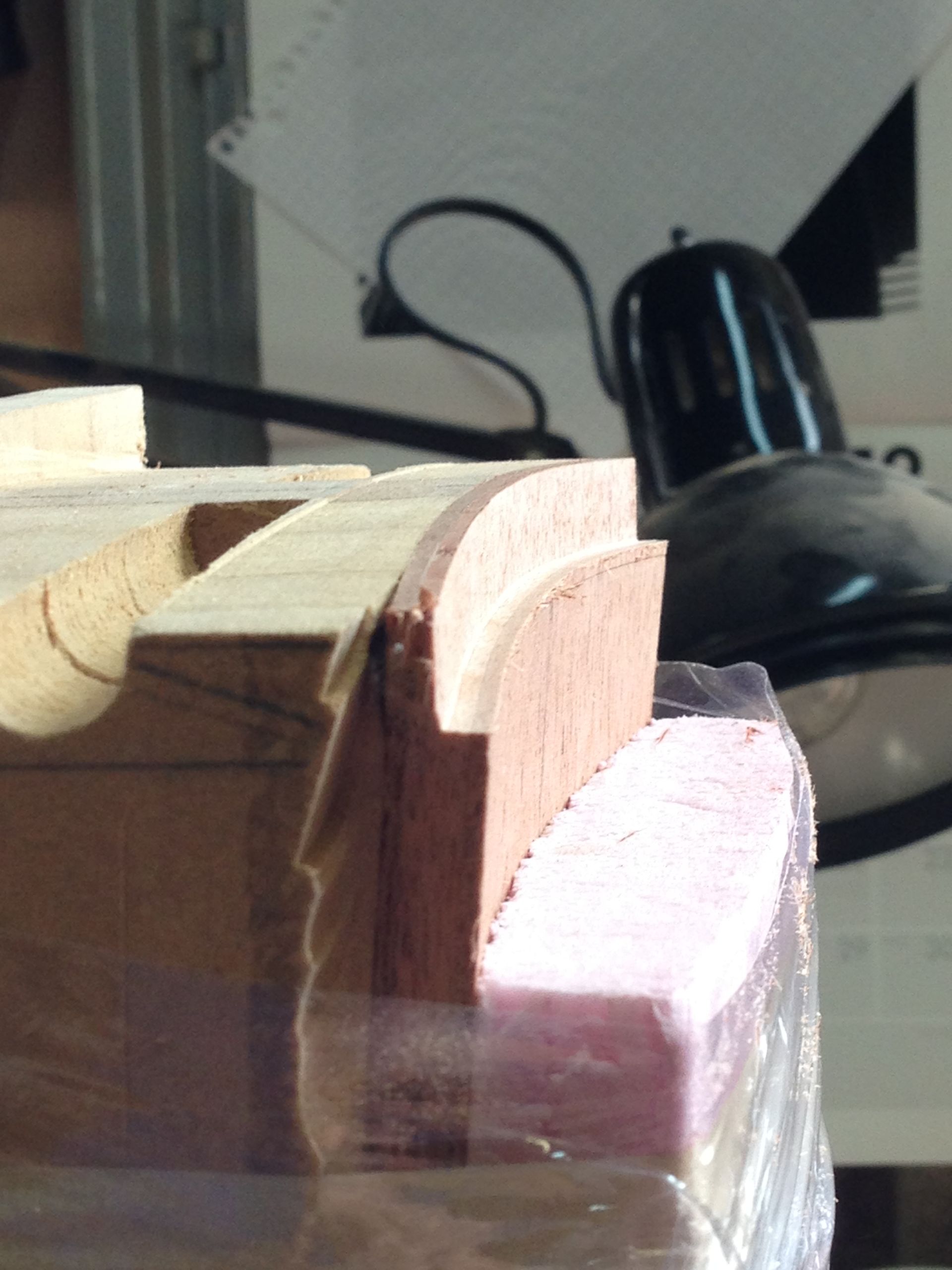

Tenon

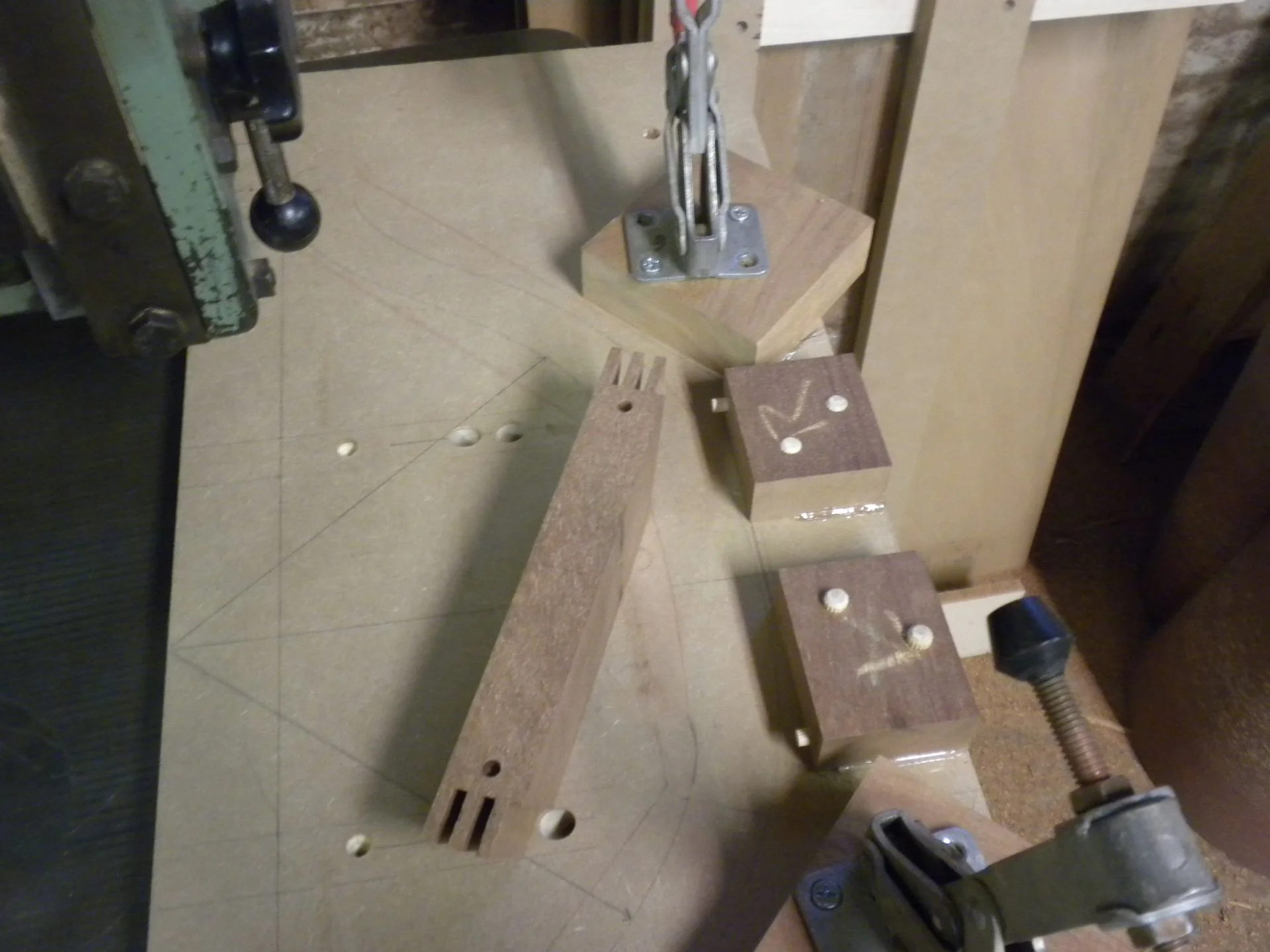

Centerof the crest rail

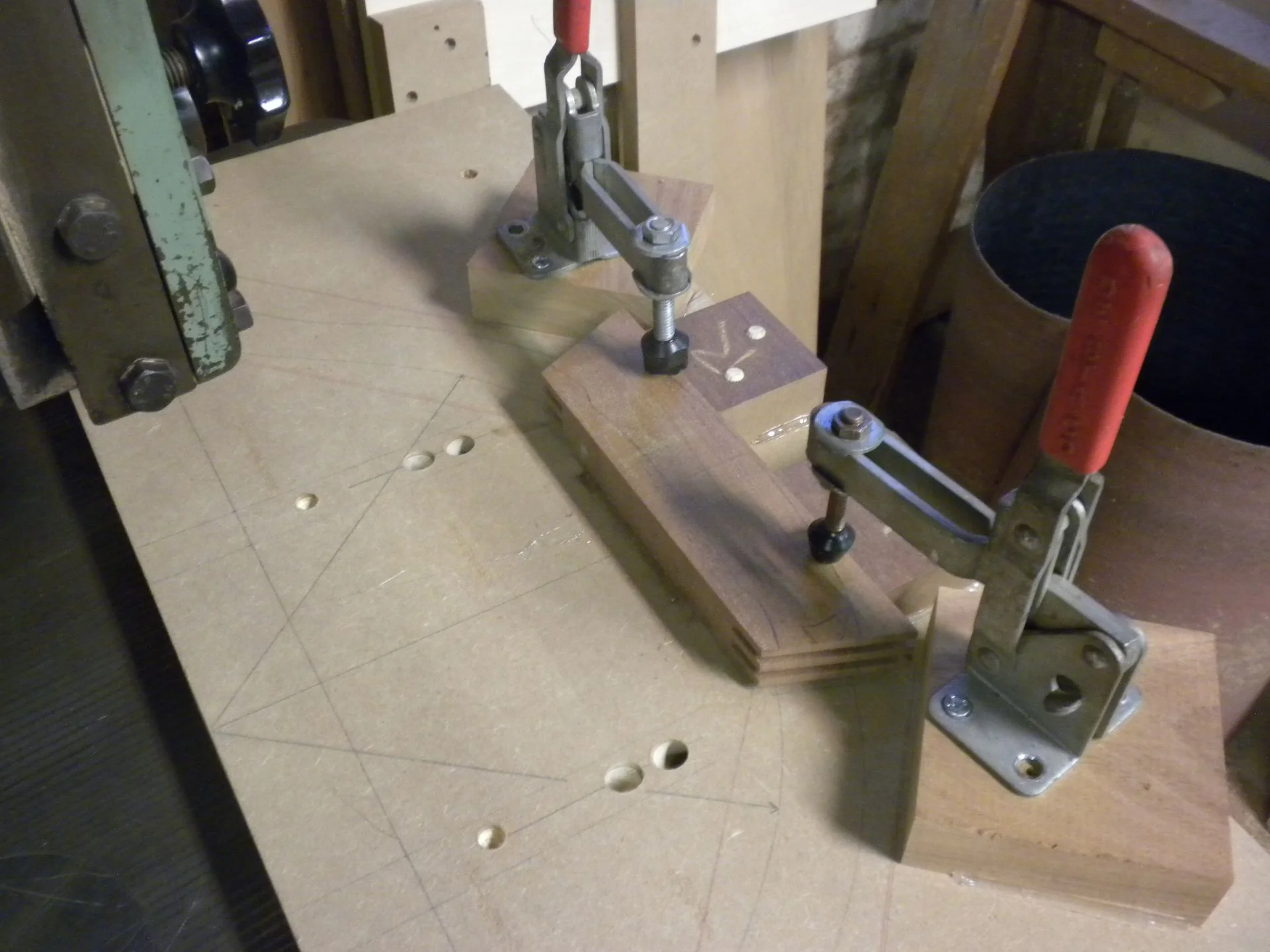

Locked down...

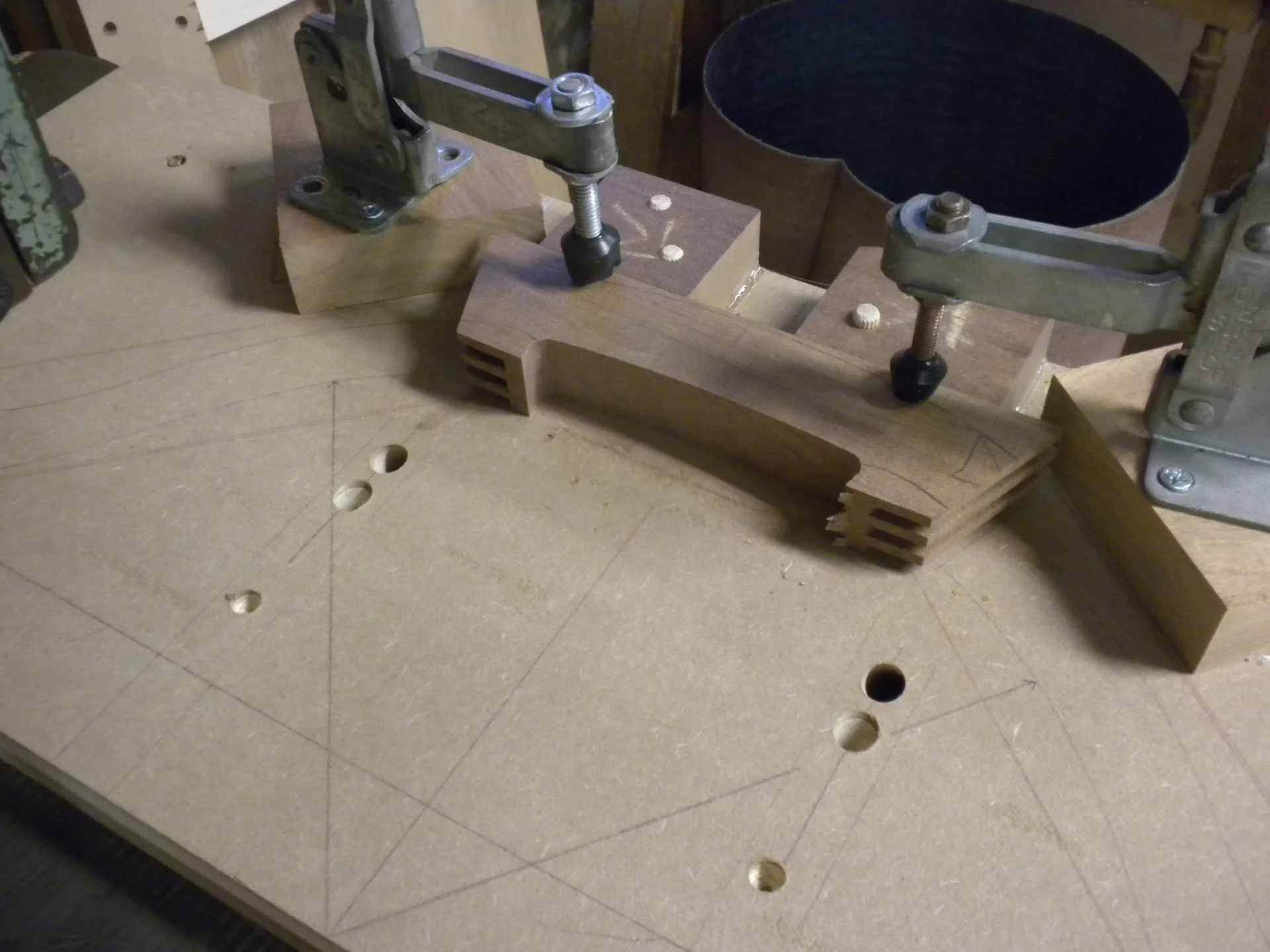

Front curve where the back splat meets the crest.

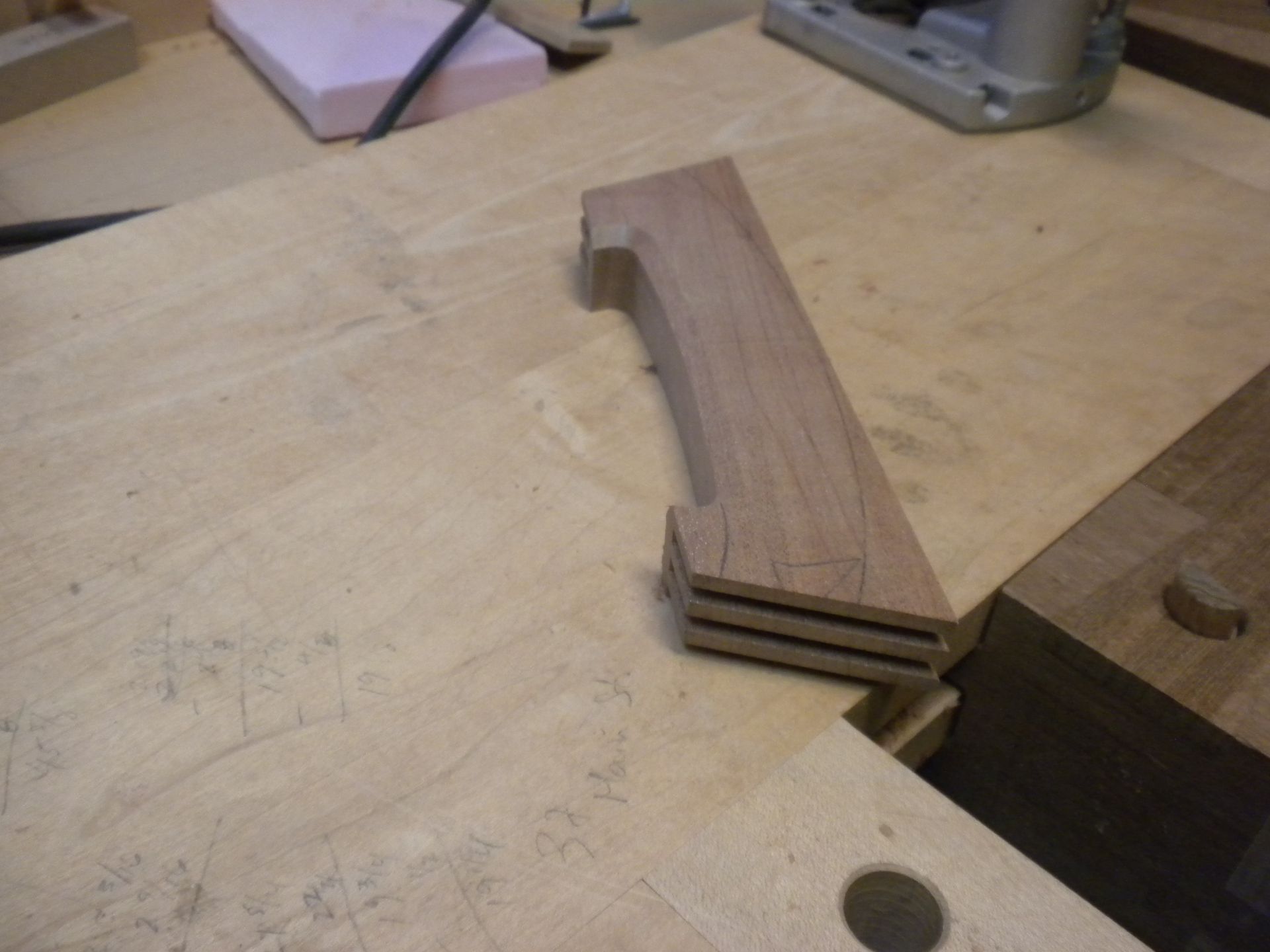

A 45 on the edge is the face against which the shoulders of the back splat tenon will eventually meet.

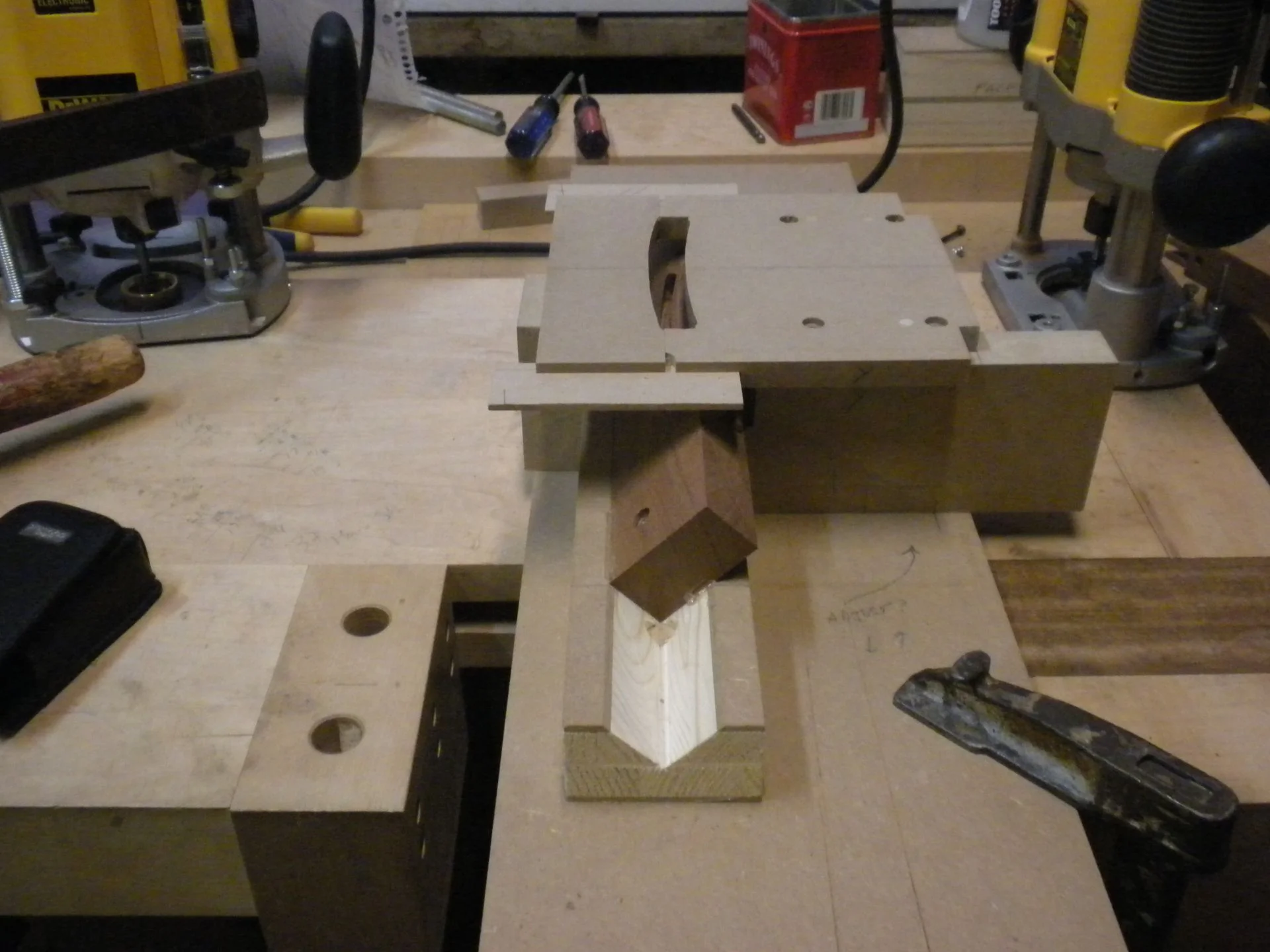

Jig on 45

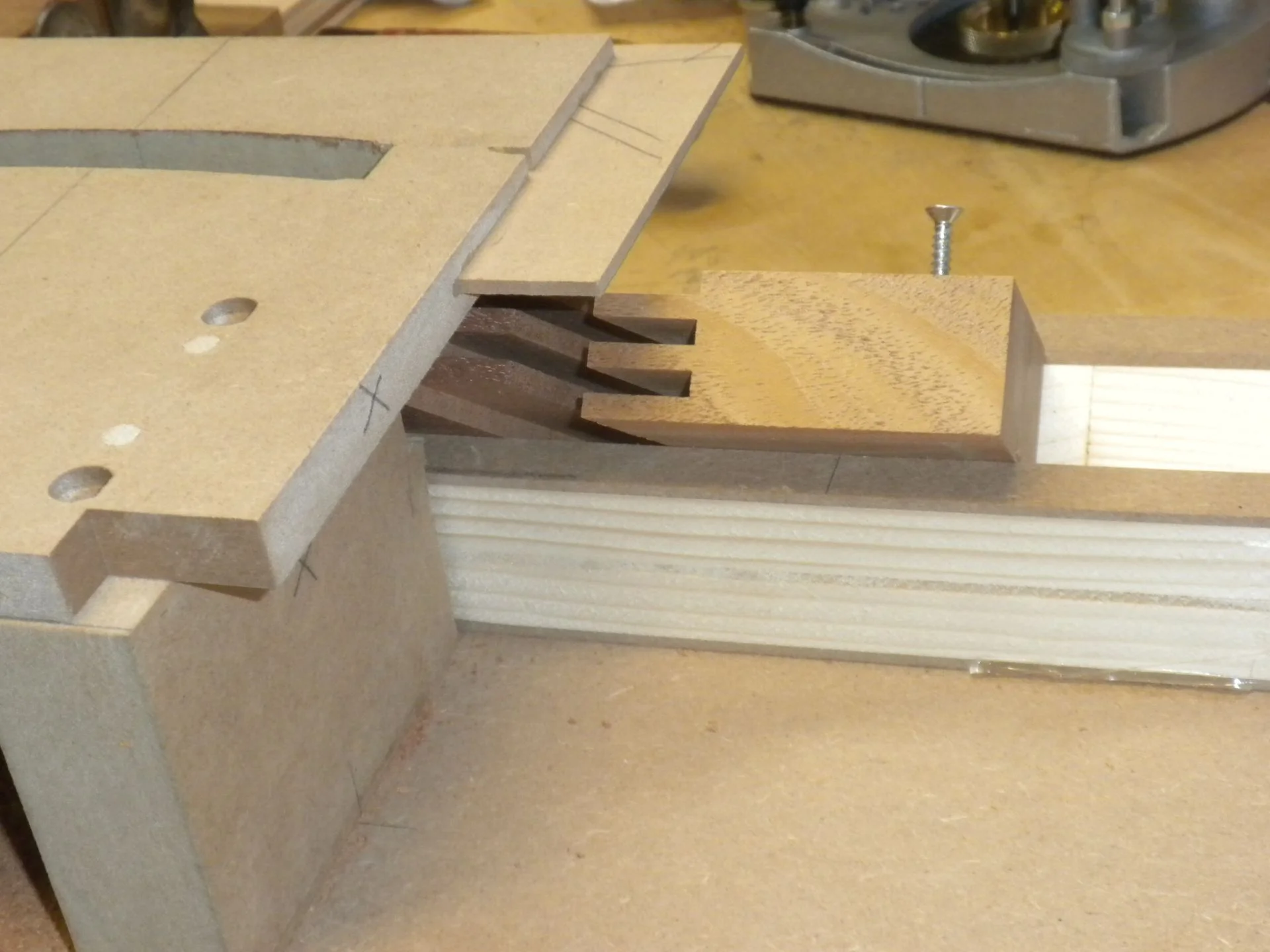

The piece is held tight with opposing finger joint stock.

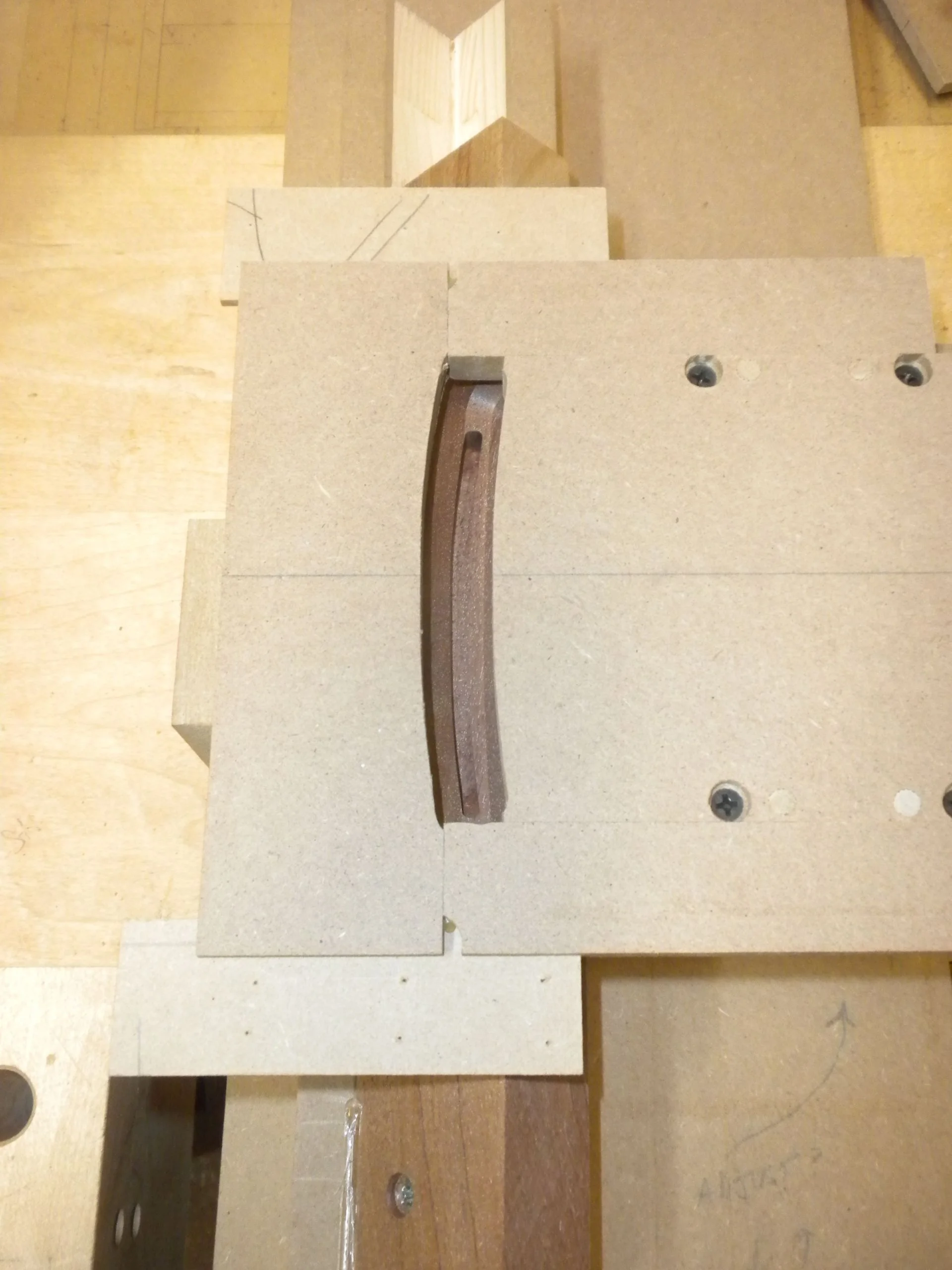

Mortice cut with router and guide bushing.

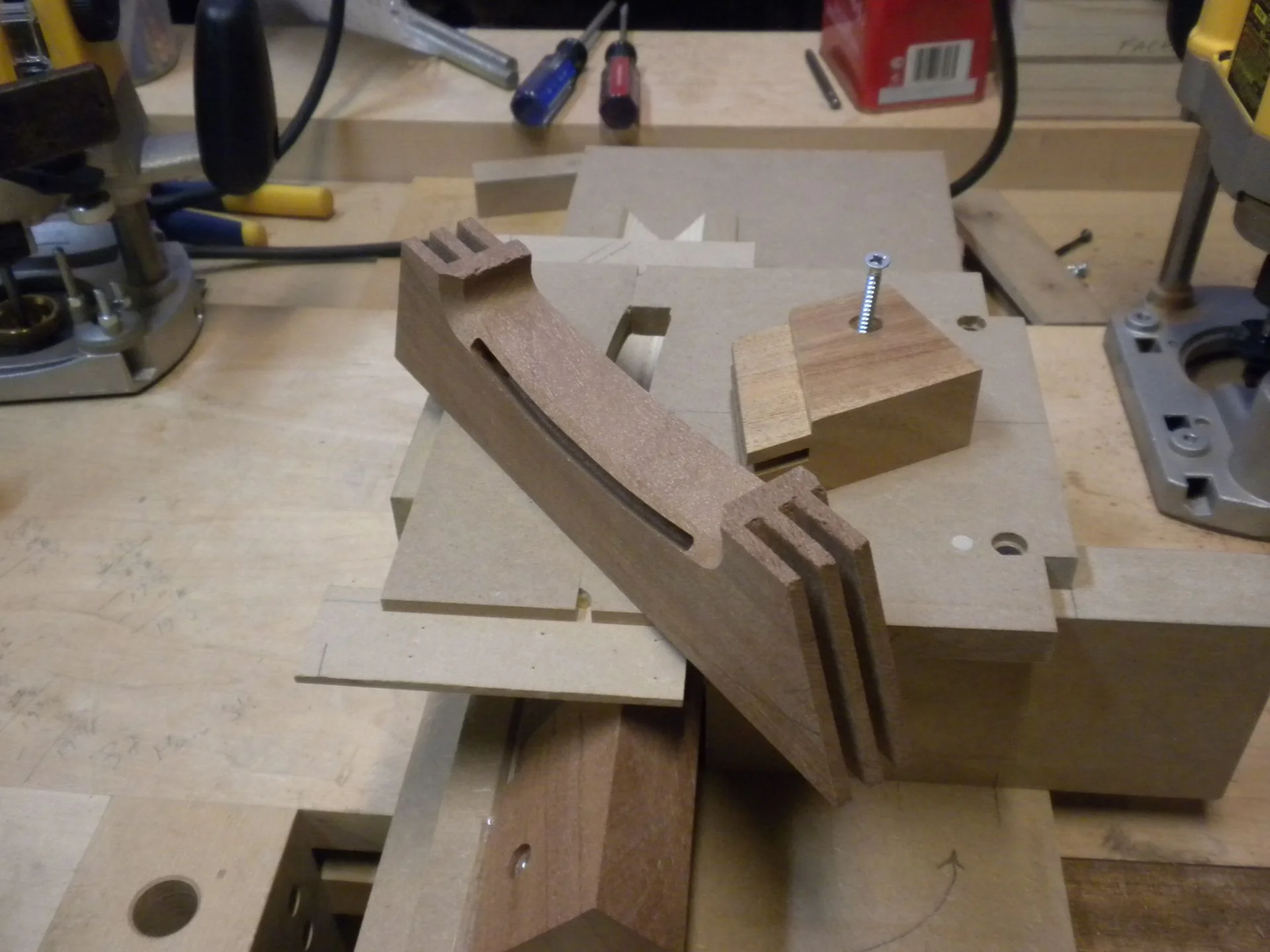

With the mortice cut the center piece is ready to be joined to the two side pieces.

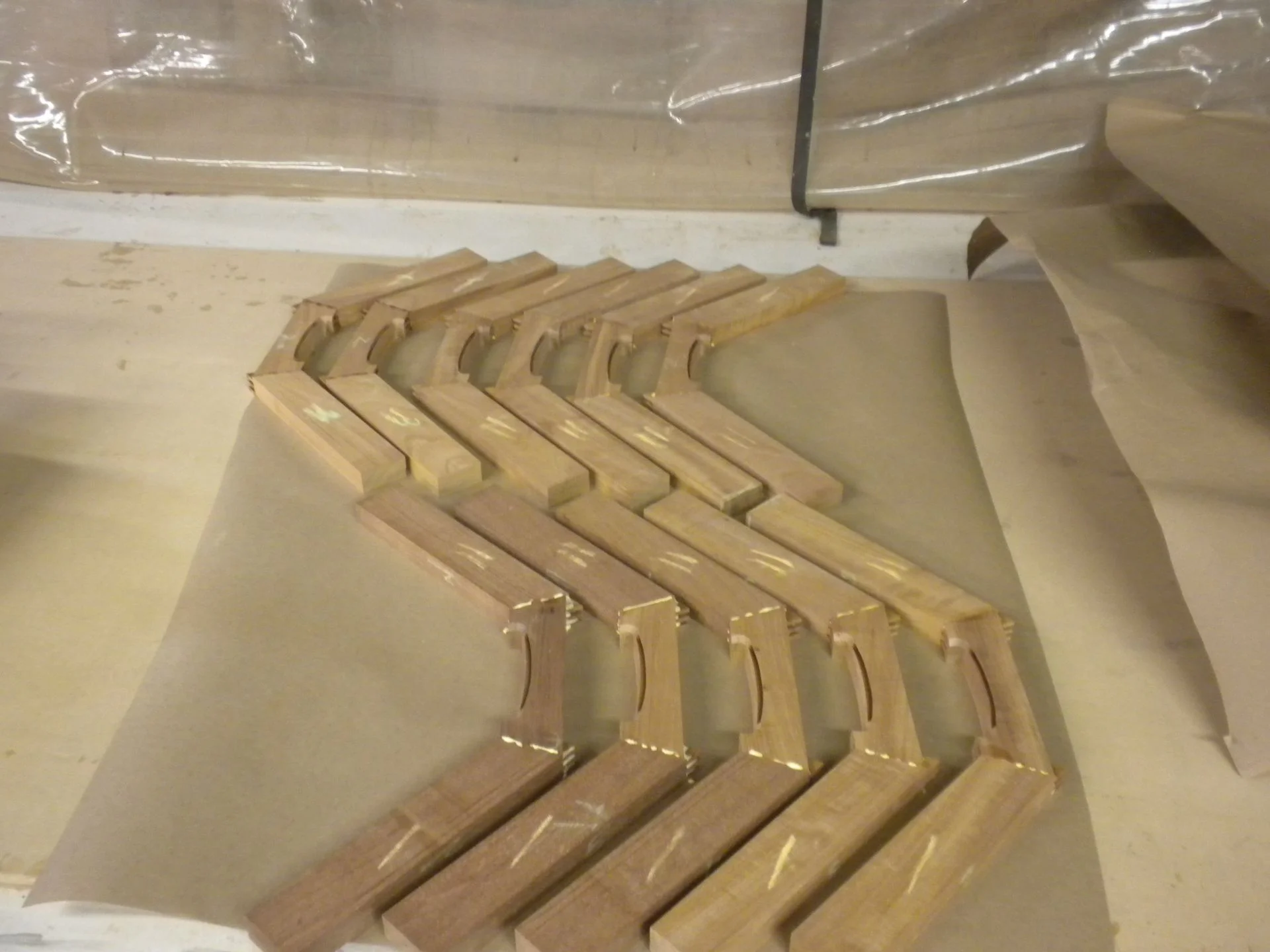

Crest rails glued up.

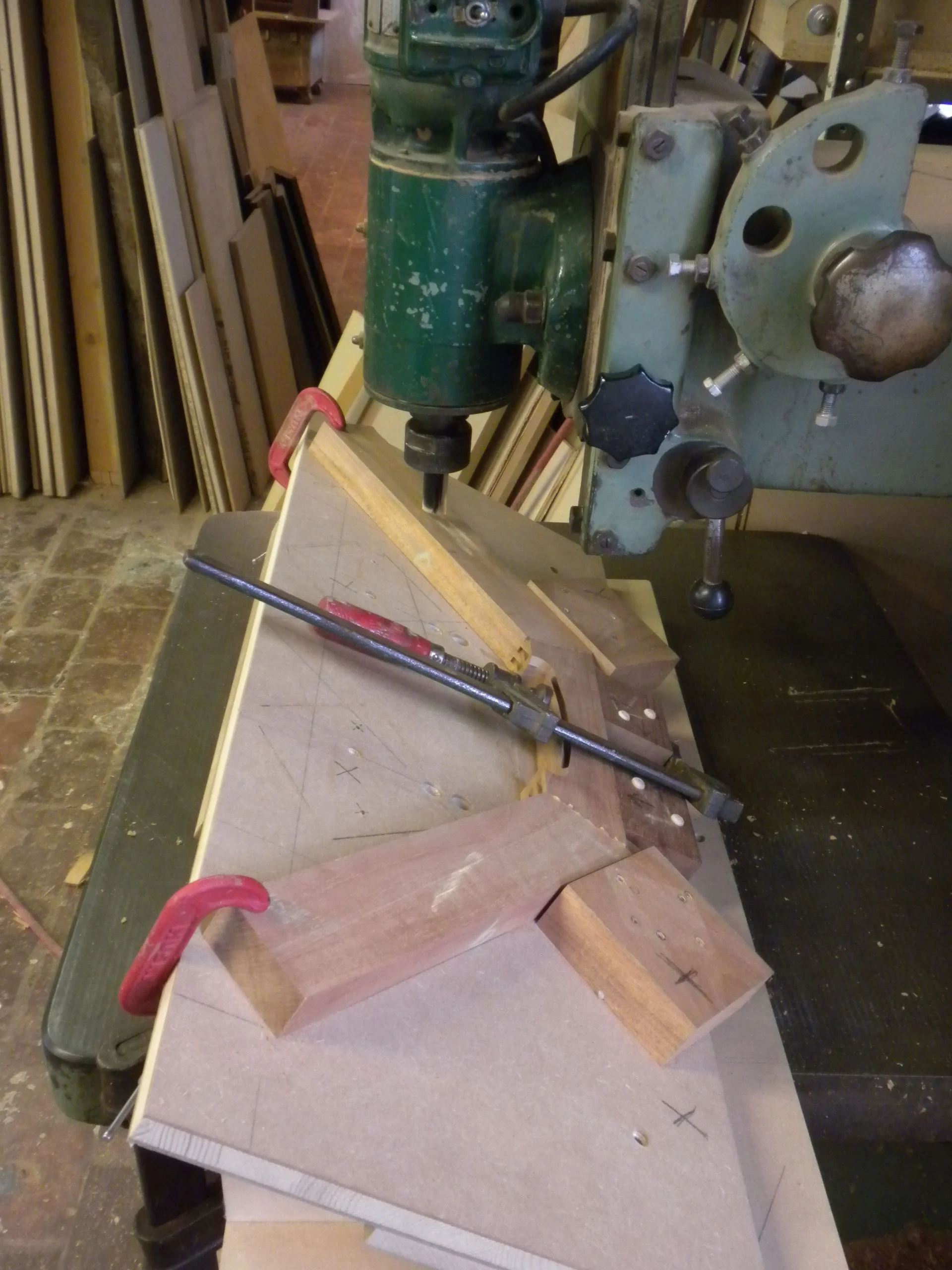

With the overhead vertical, the crest rail is on an angle to cut the holes for the back legs.

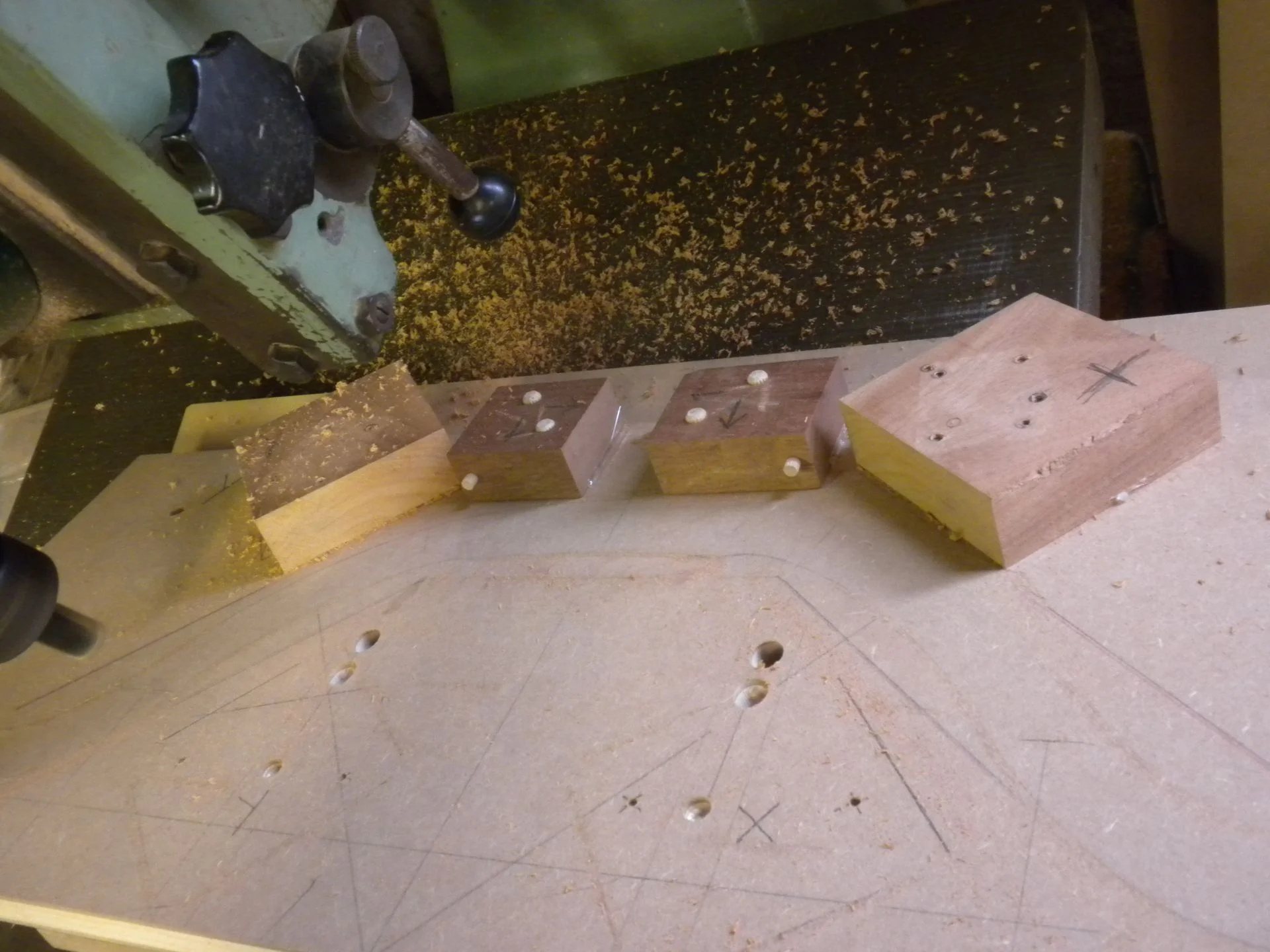

The same base jig from earlier with the dowels used to locate the crest rail in the same place for each cut.

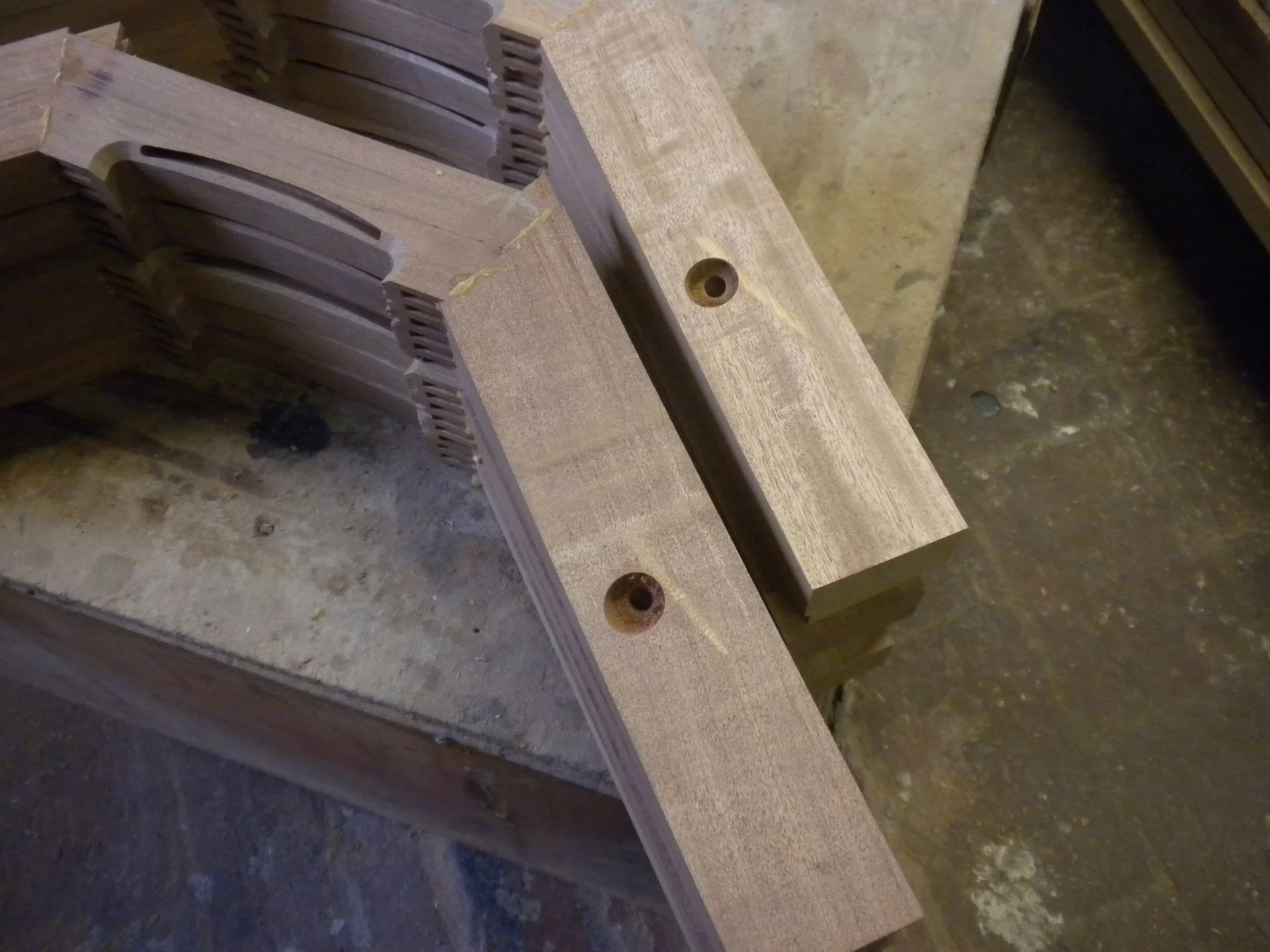

Mortice for the back leg and a centered dowel for strength.

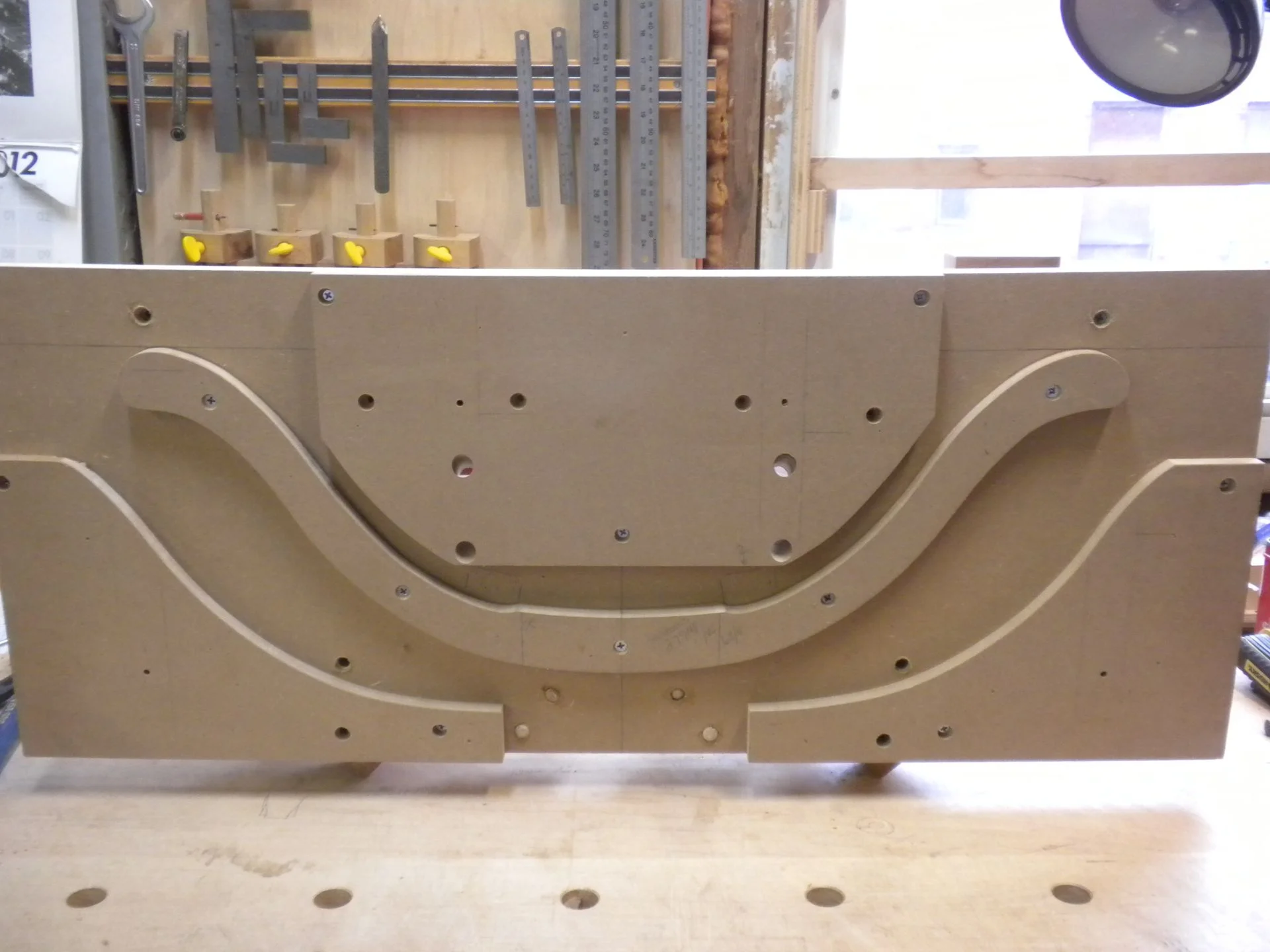

Crest rail template for overhead pin router.

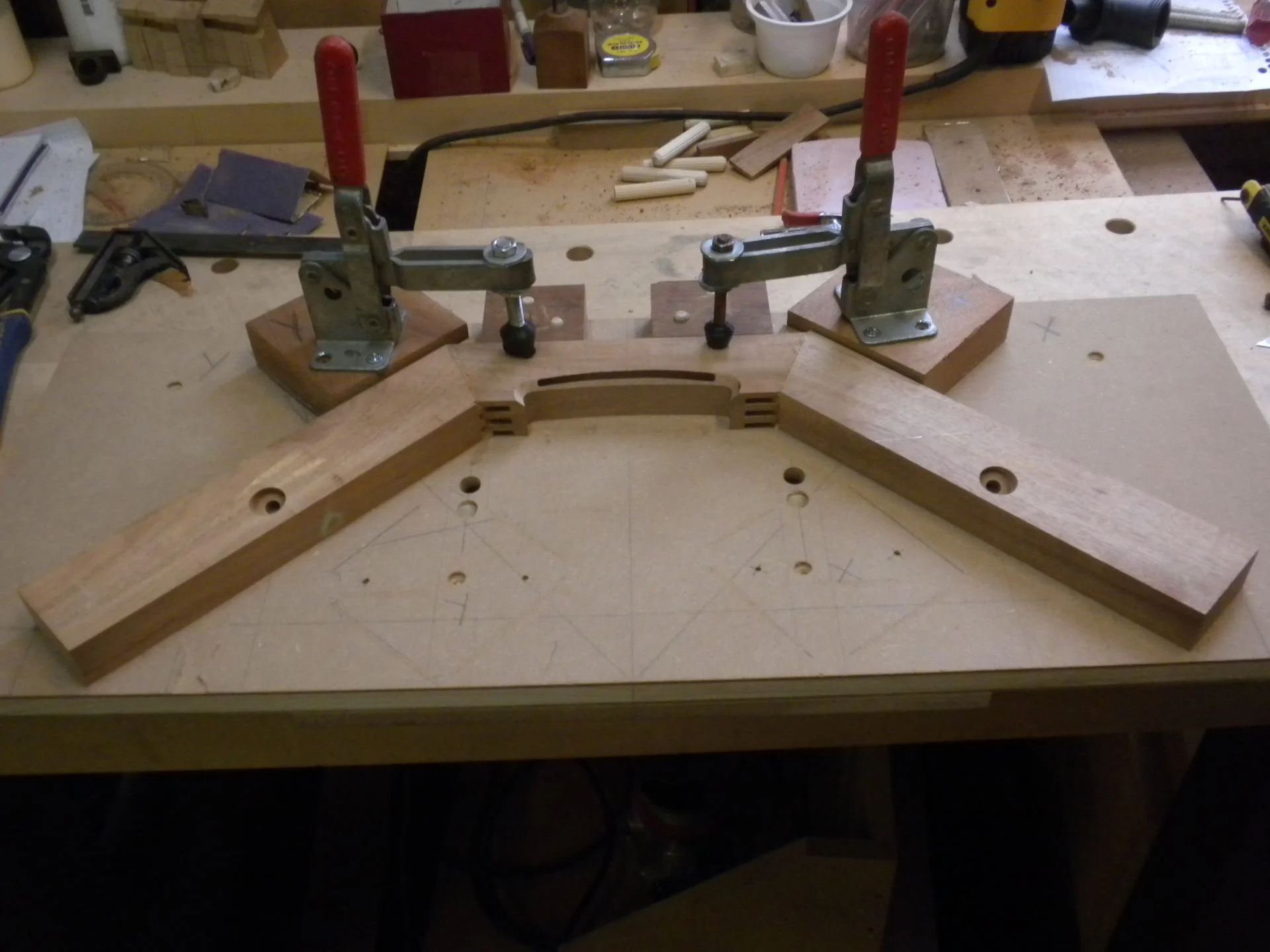

Back in lock-down

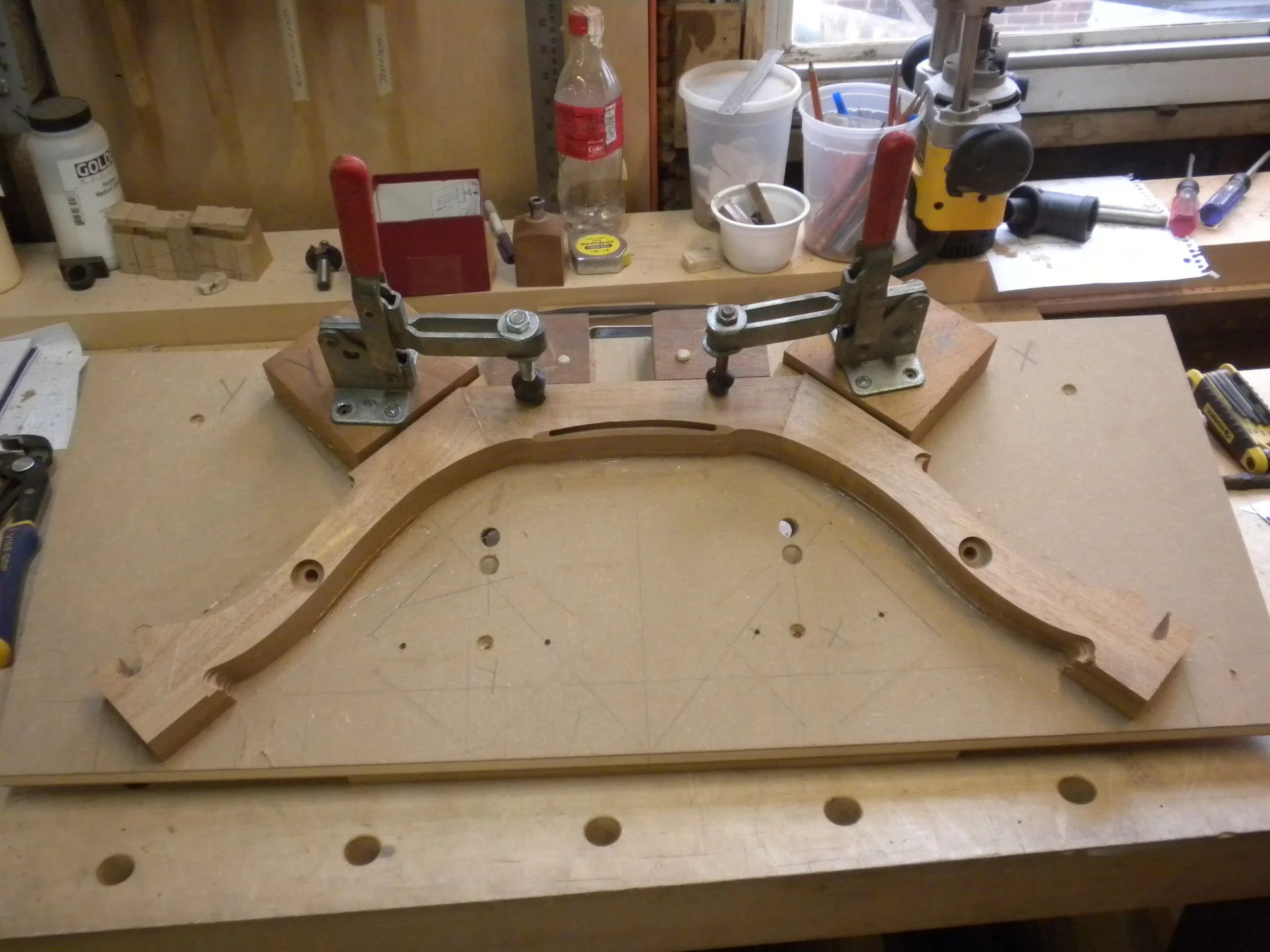

Taking shape

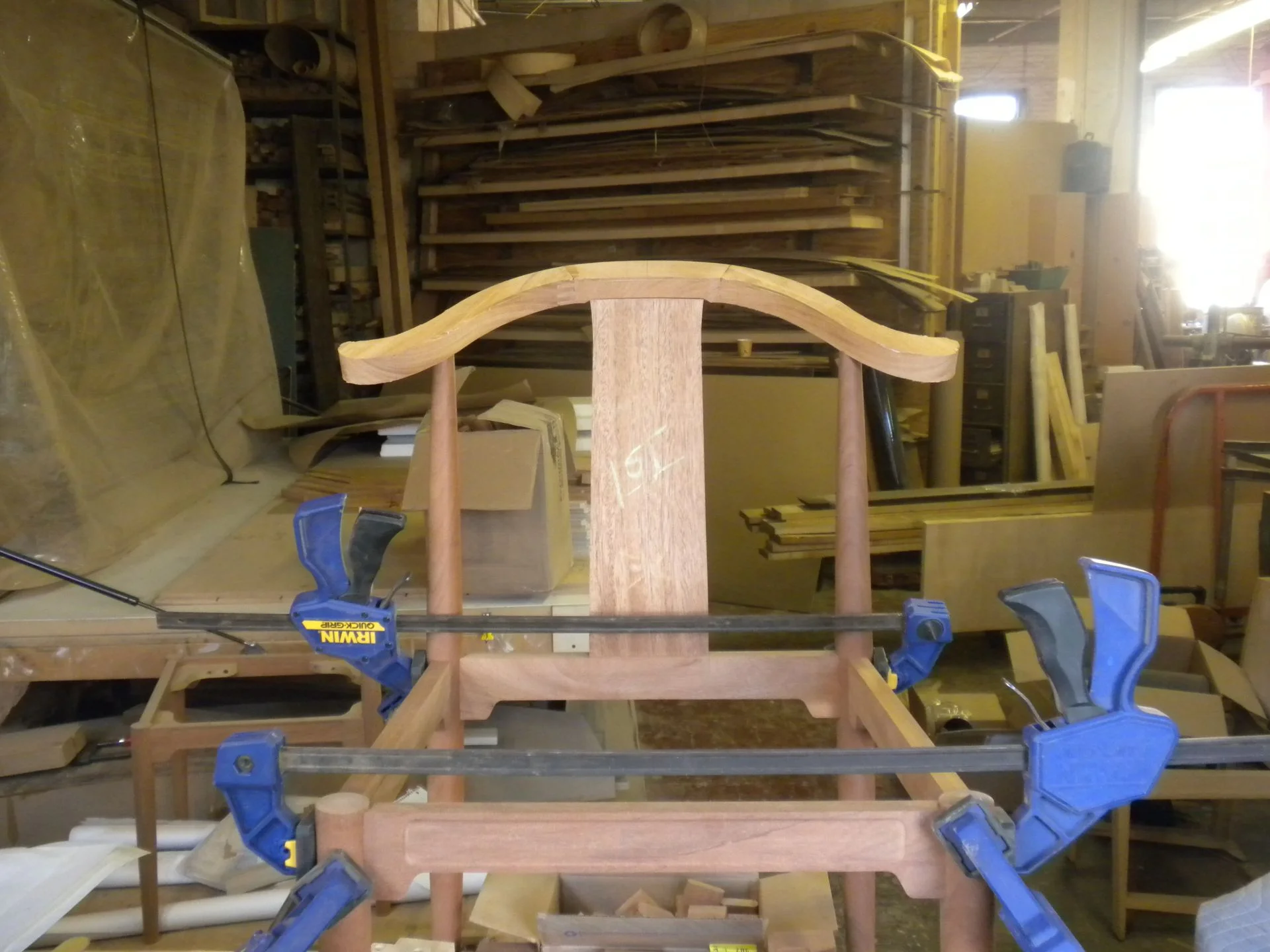

Coming together

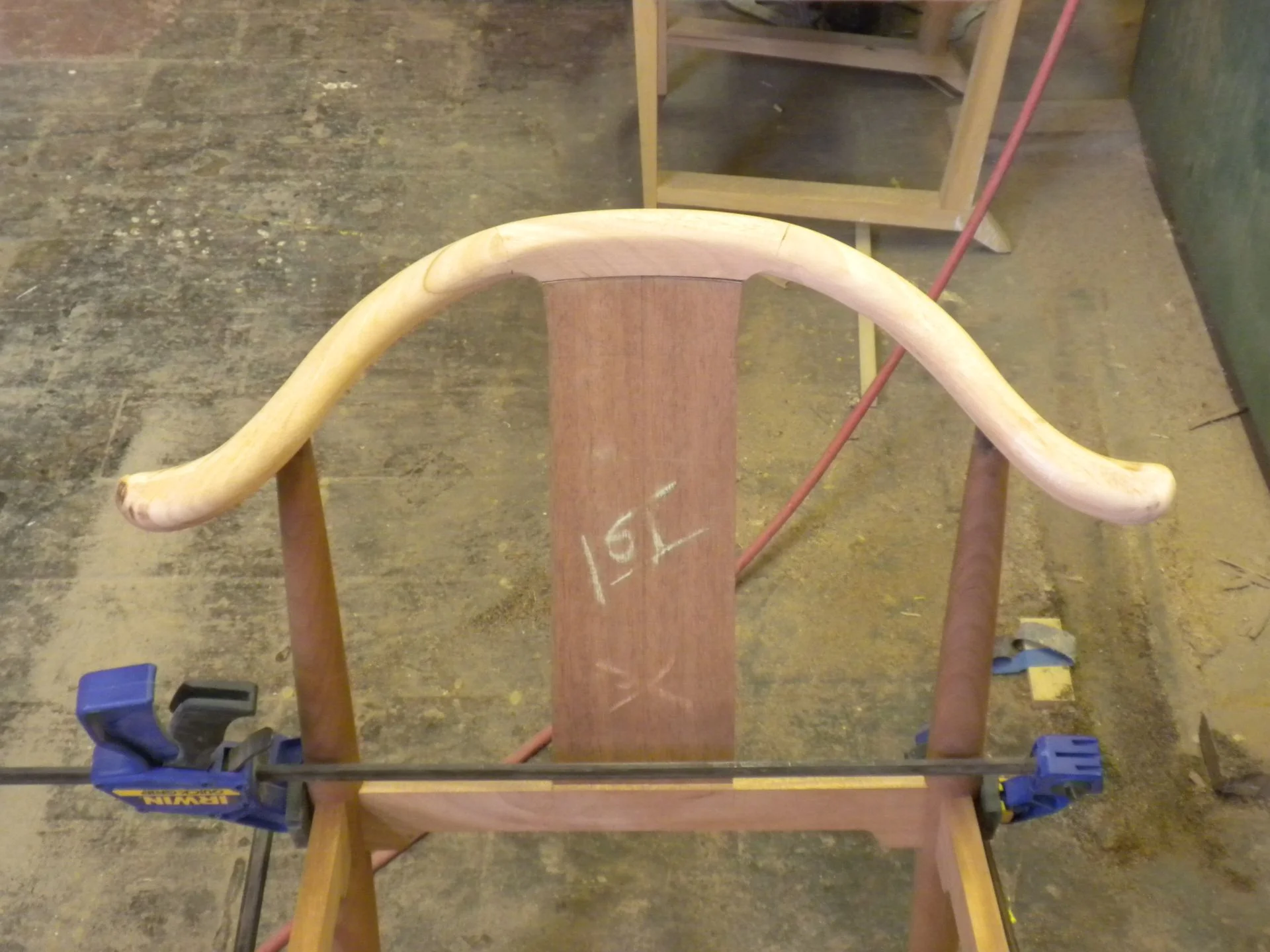

Rounded over.

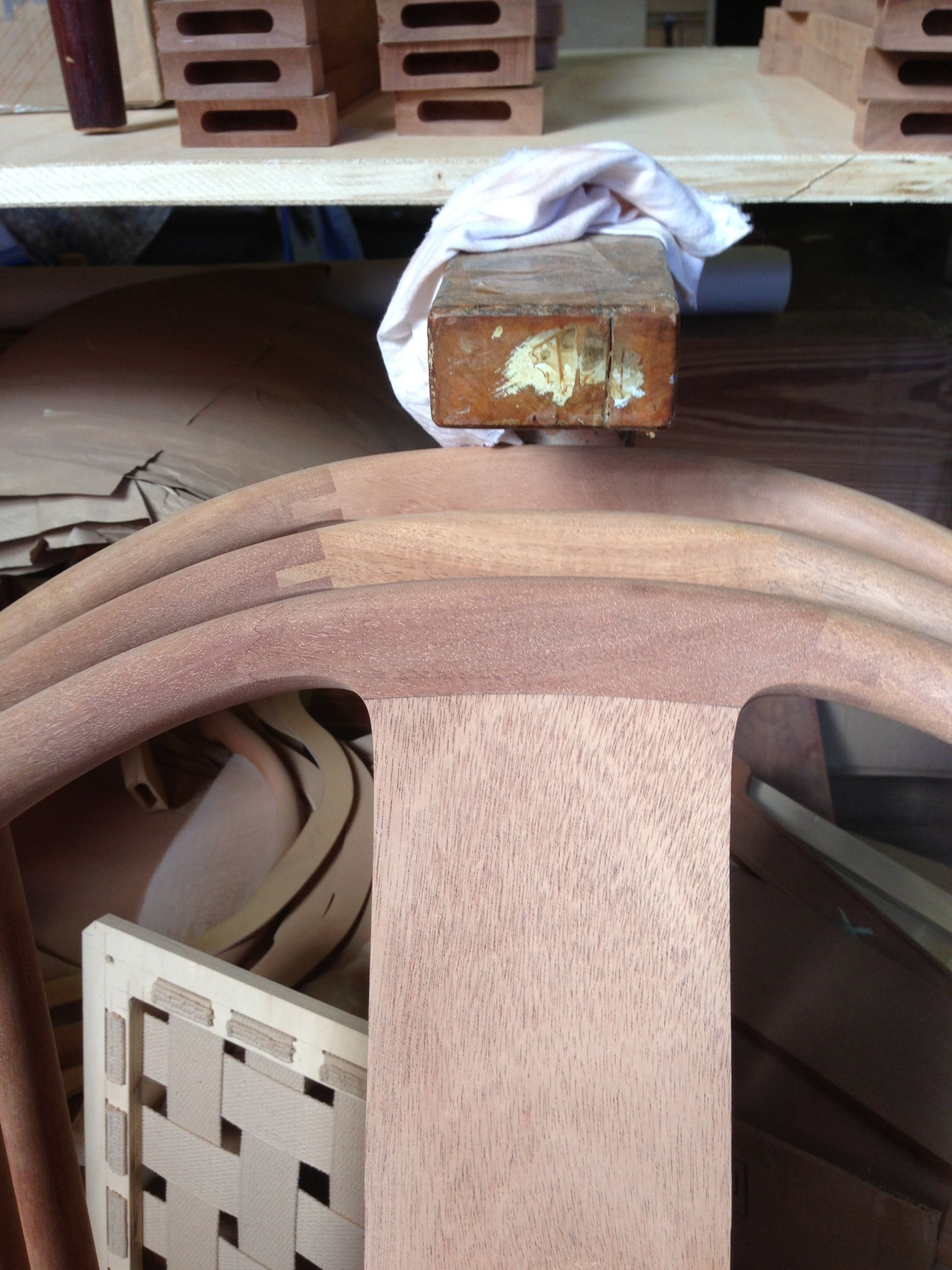

Shaped, sanded and glued up.

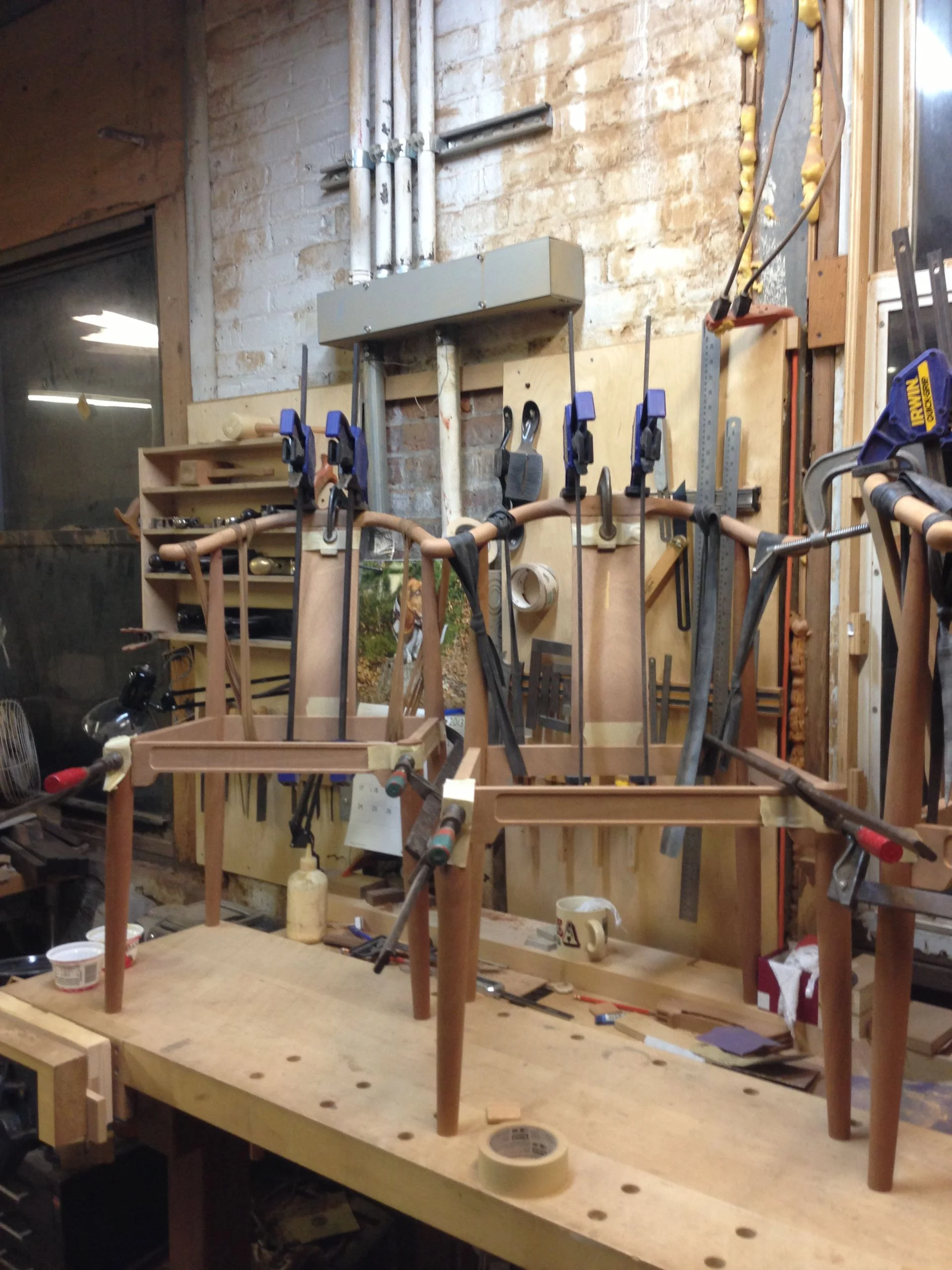

Complex glue up getting everything together!

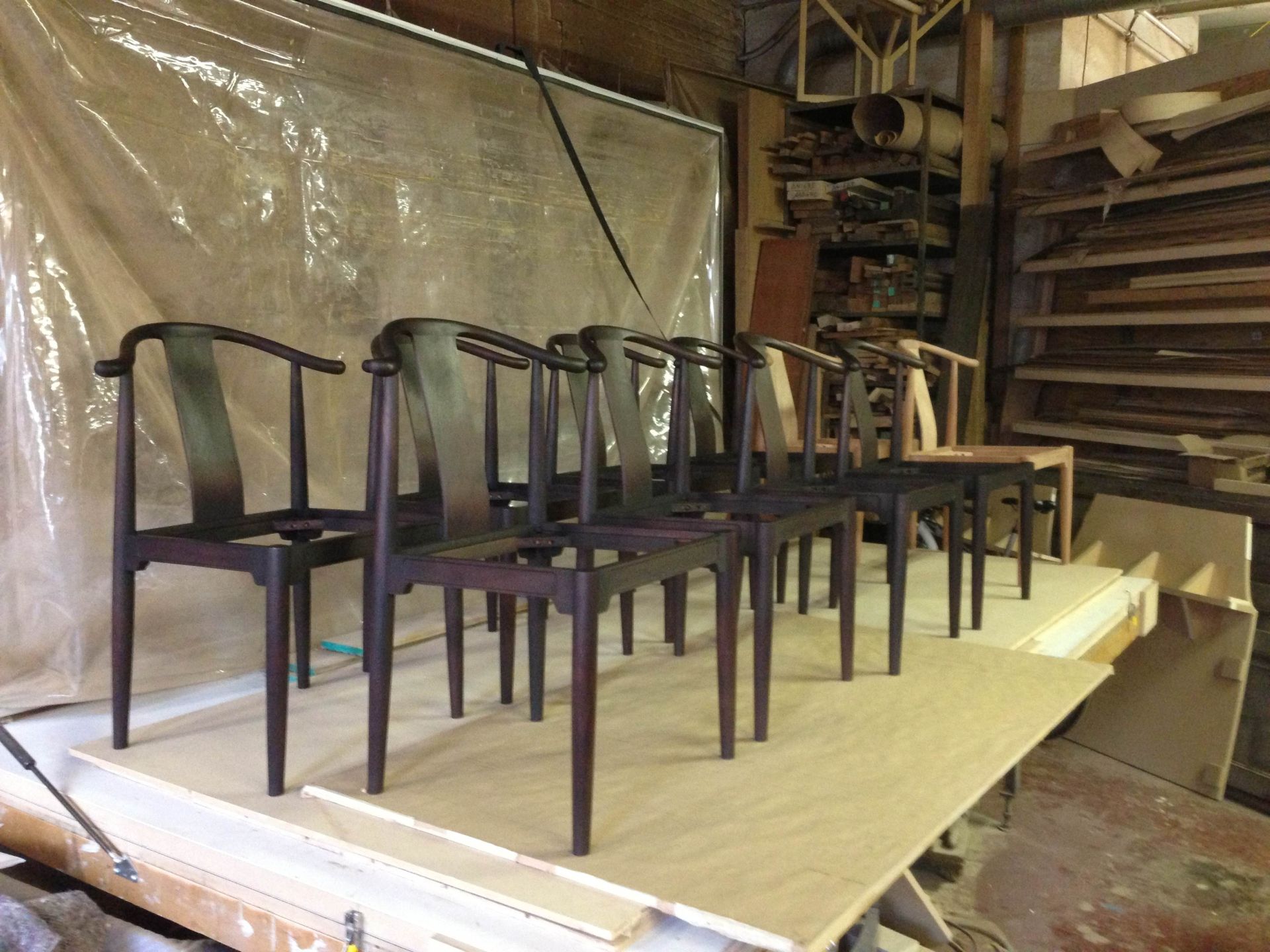

Stained

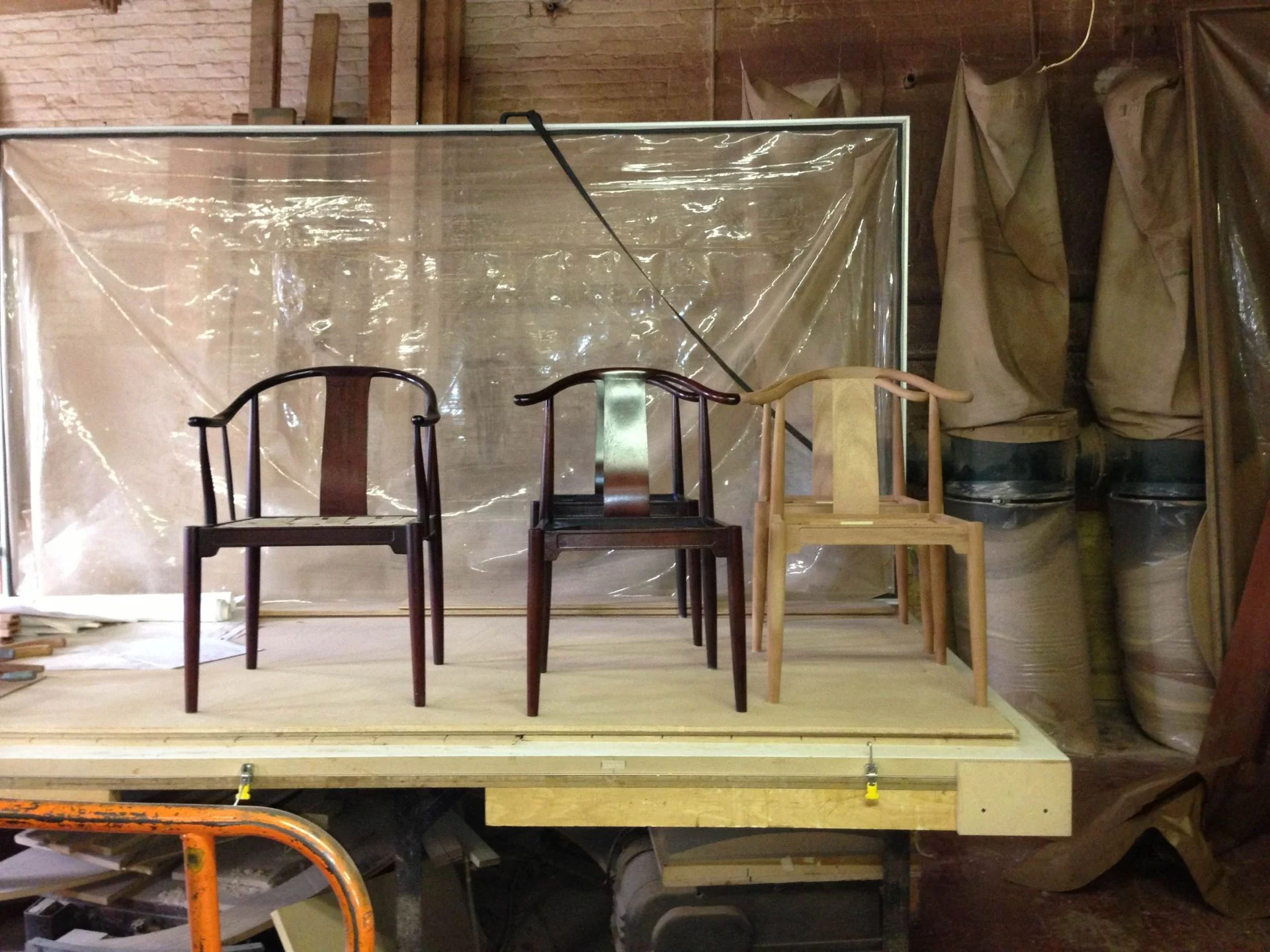

Original
